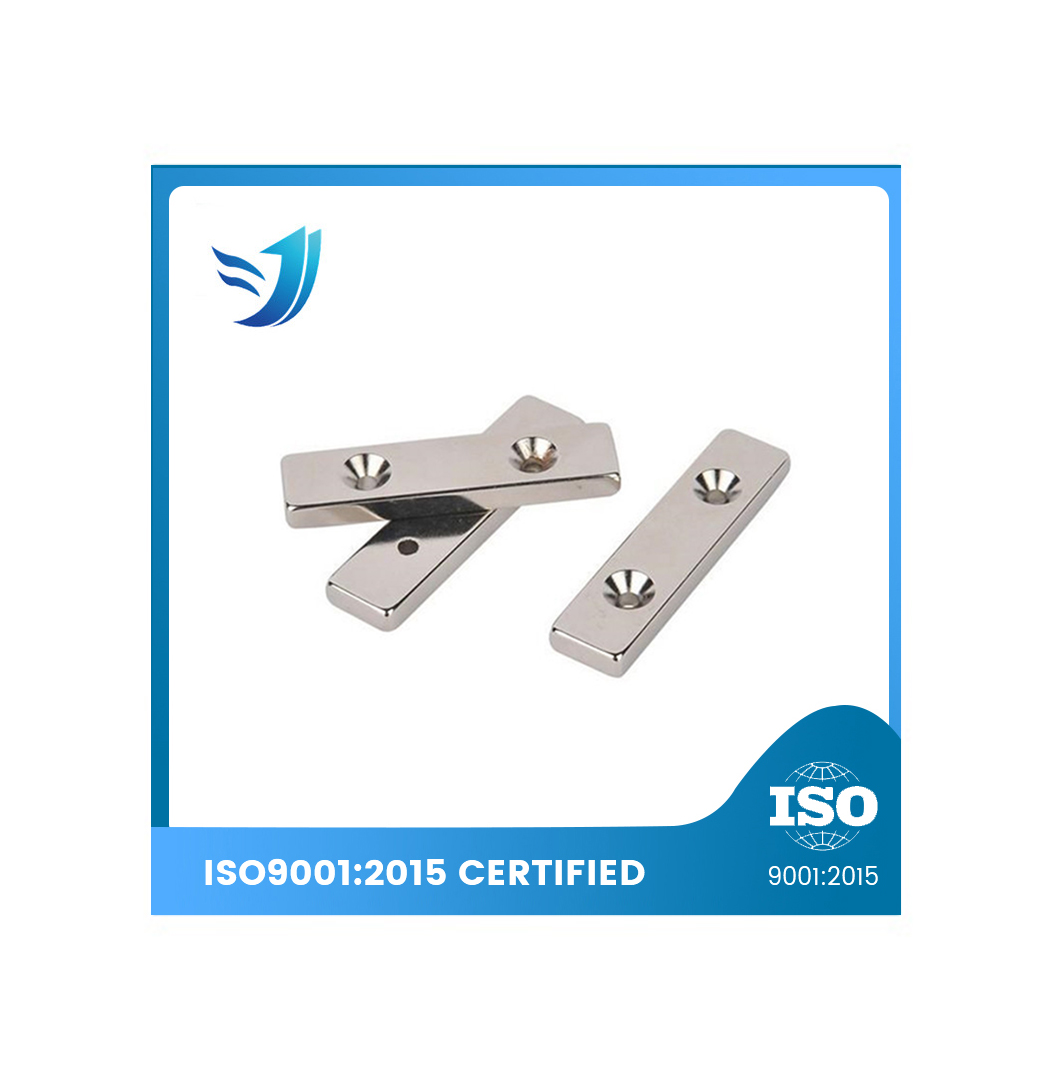

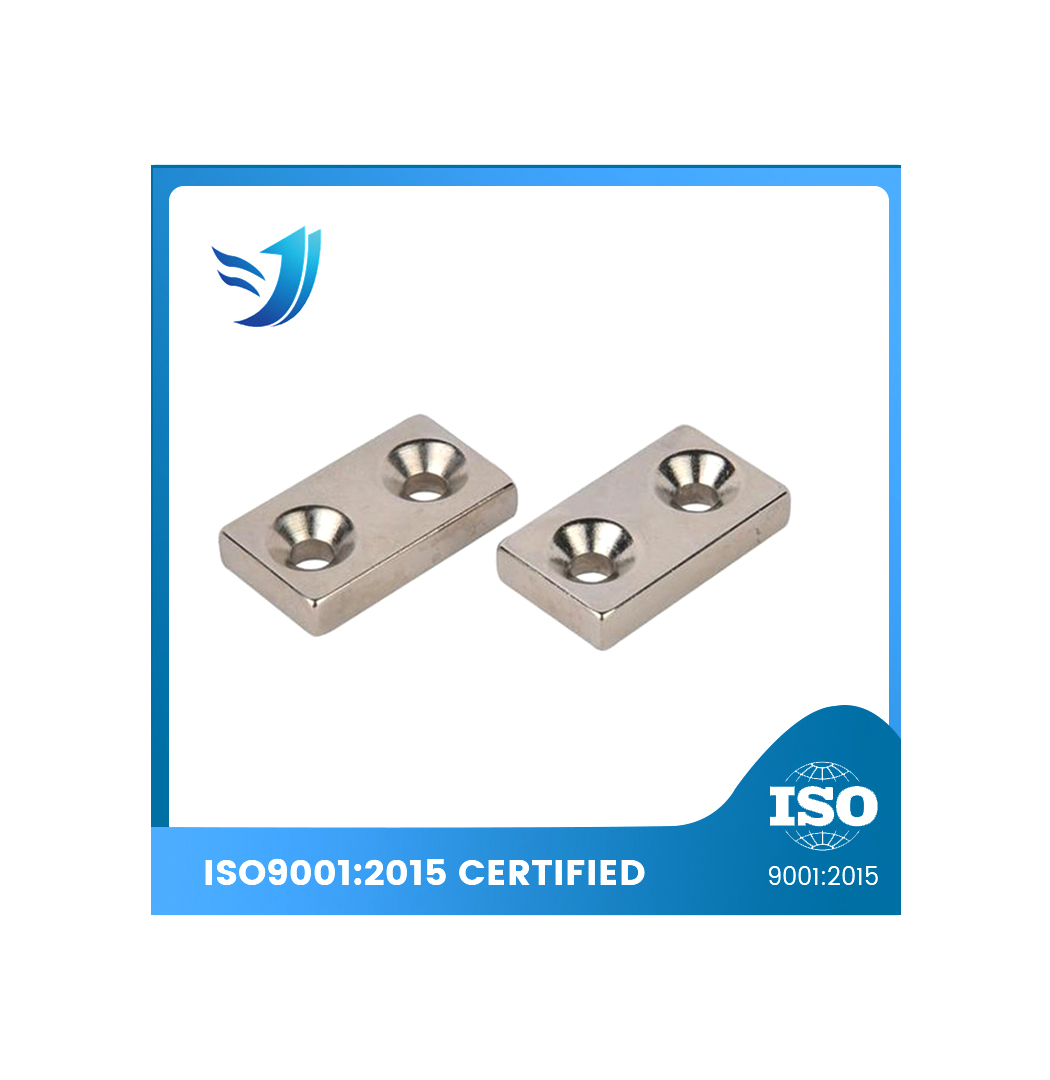

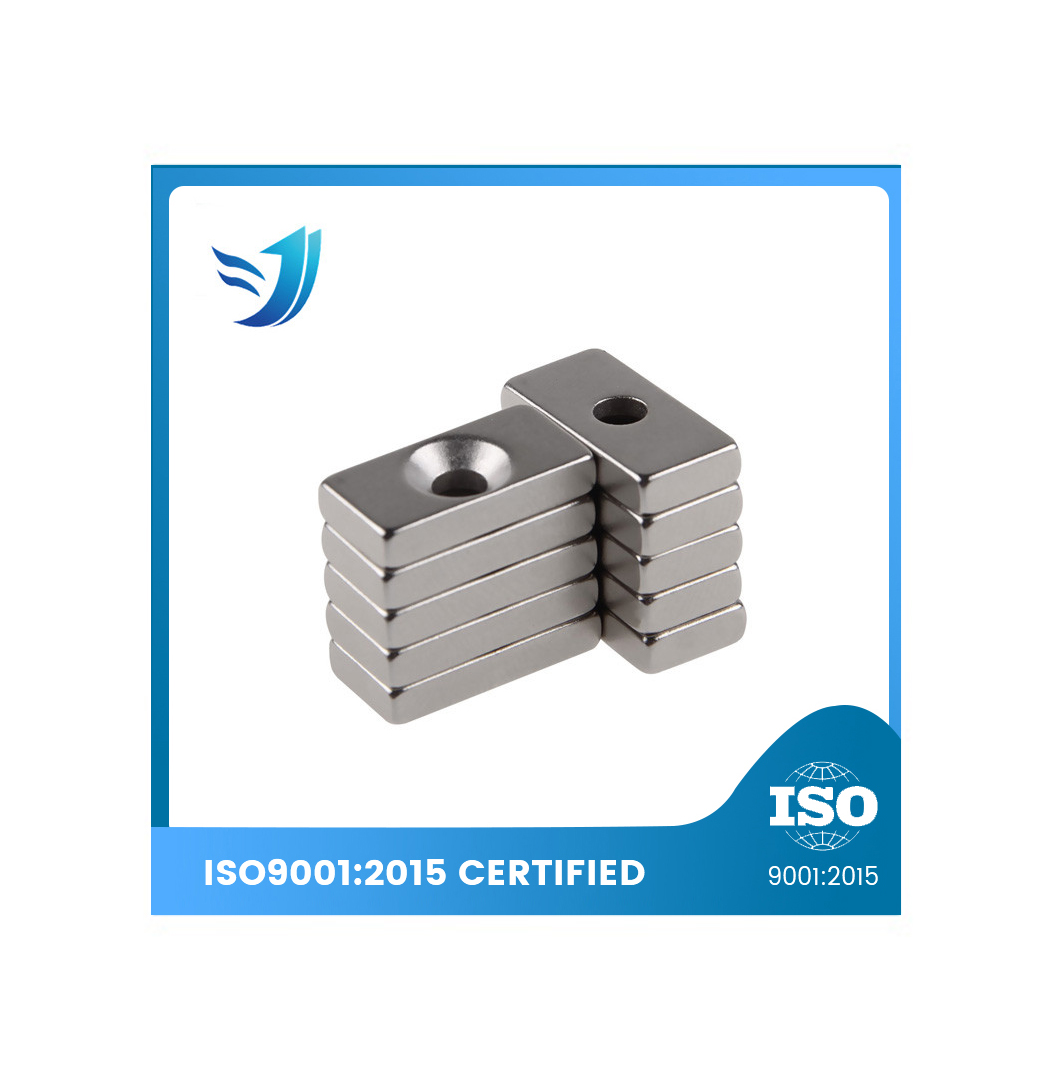

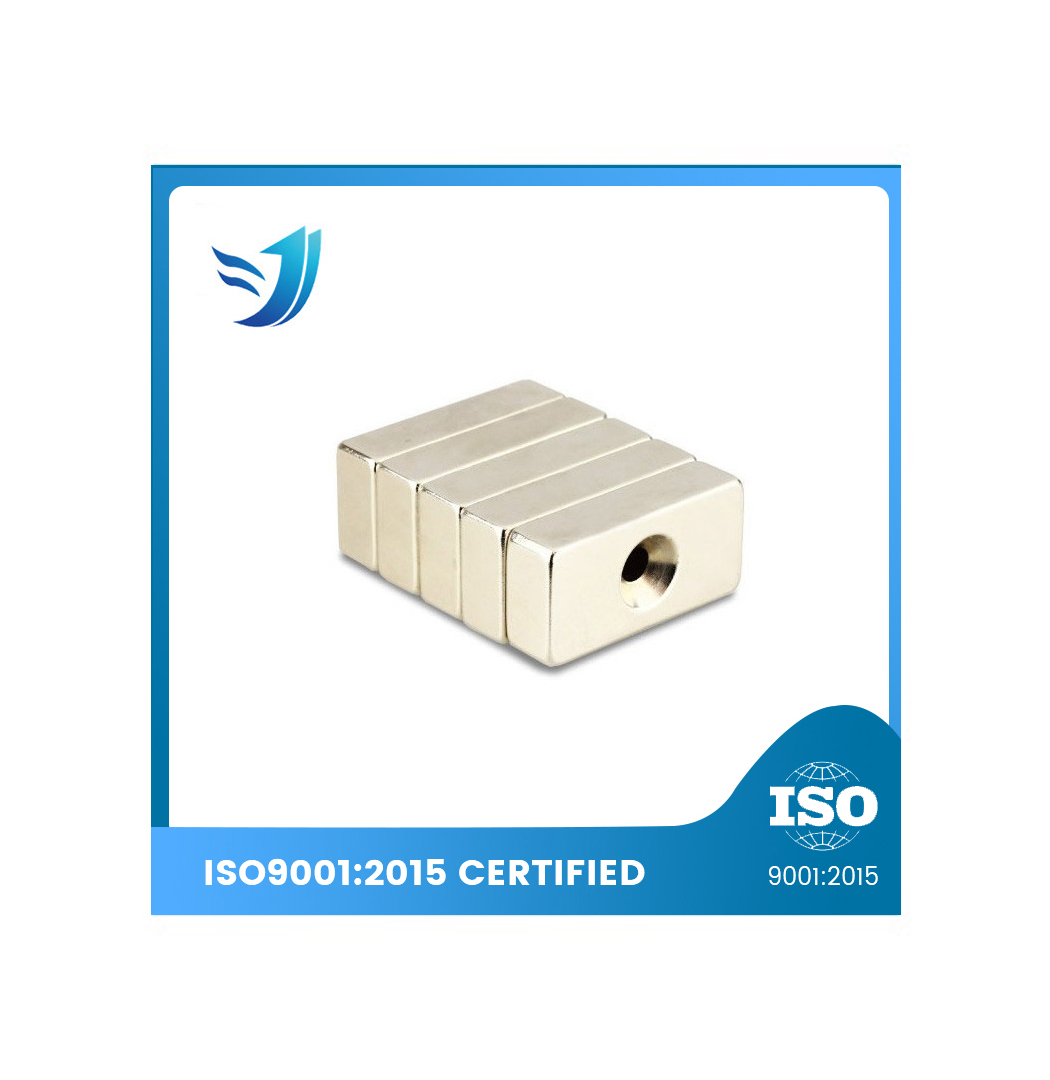

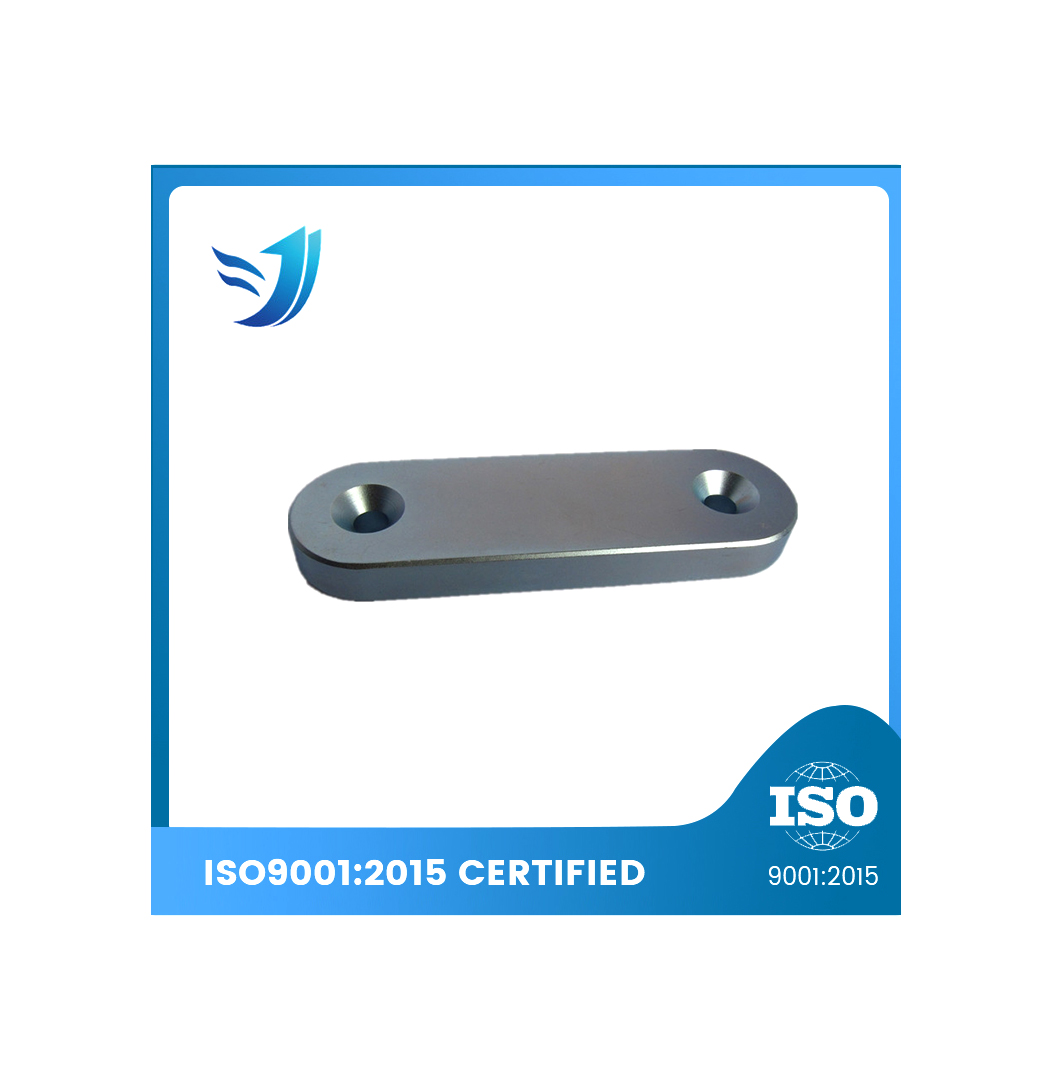

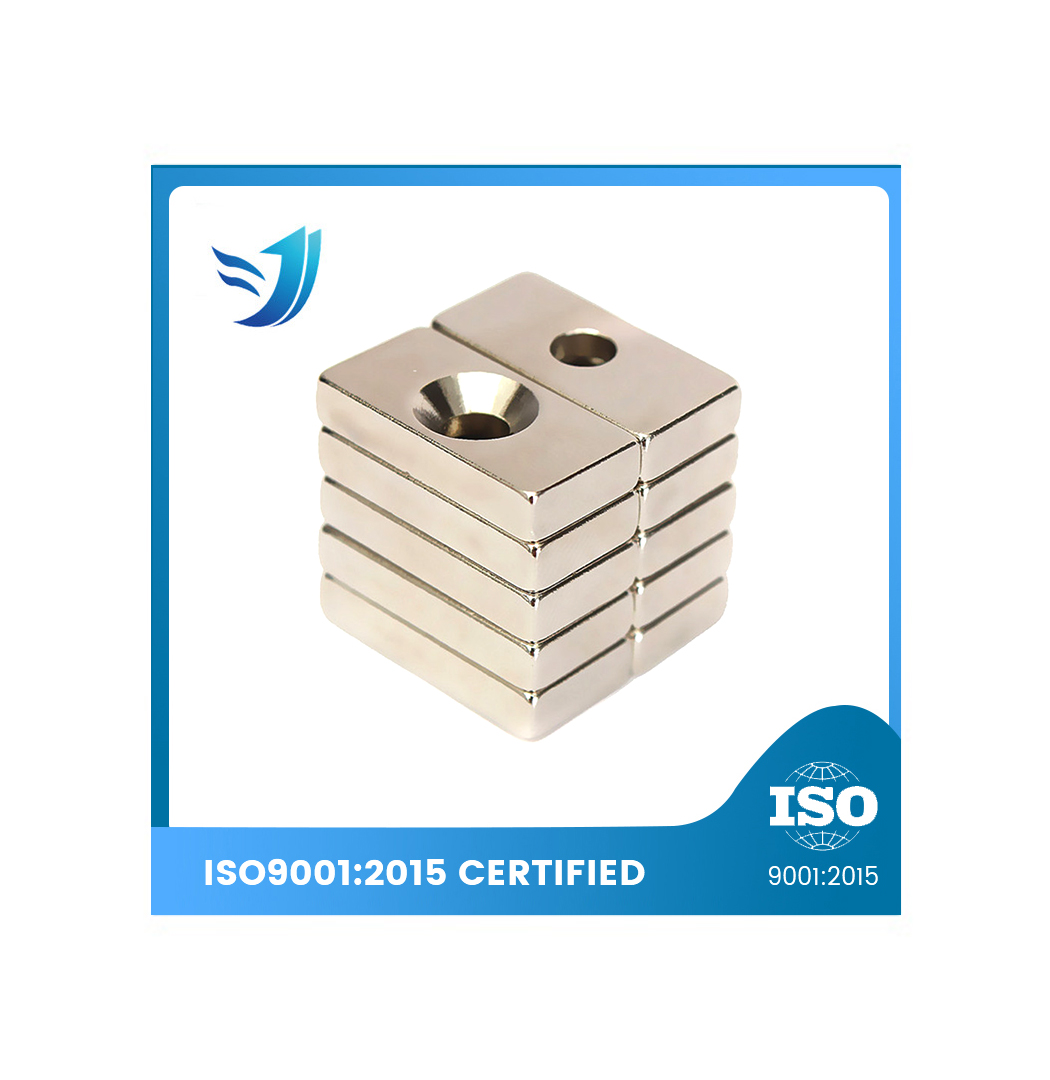

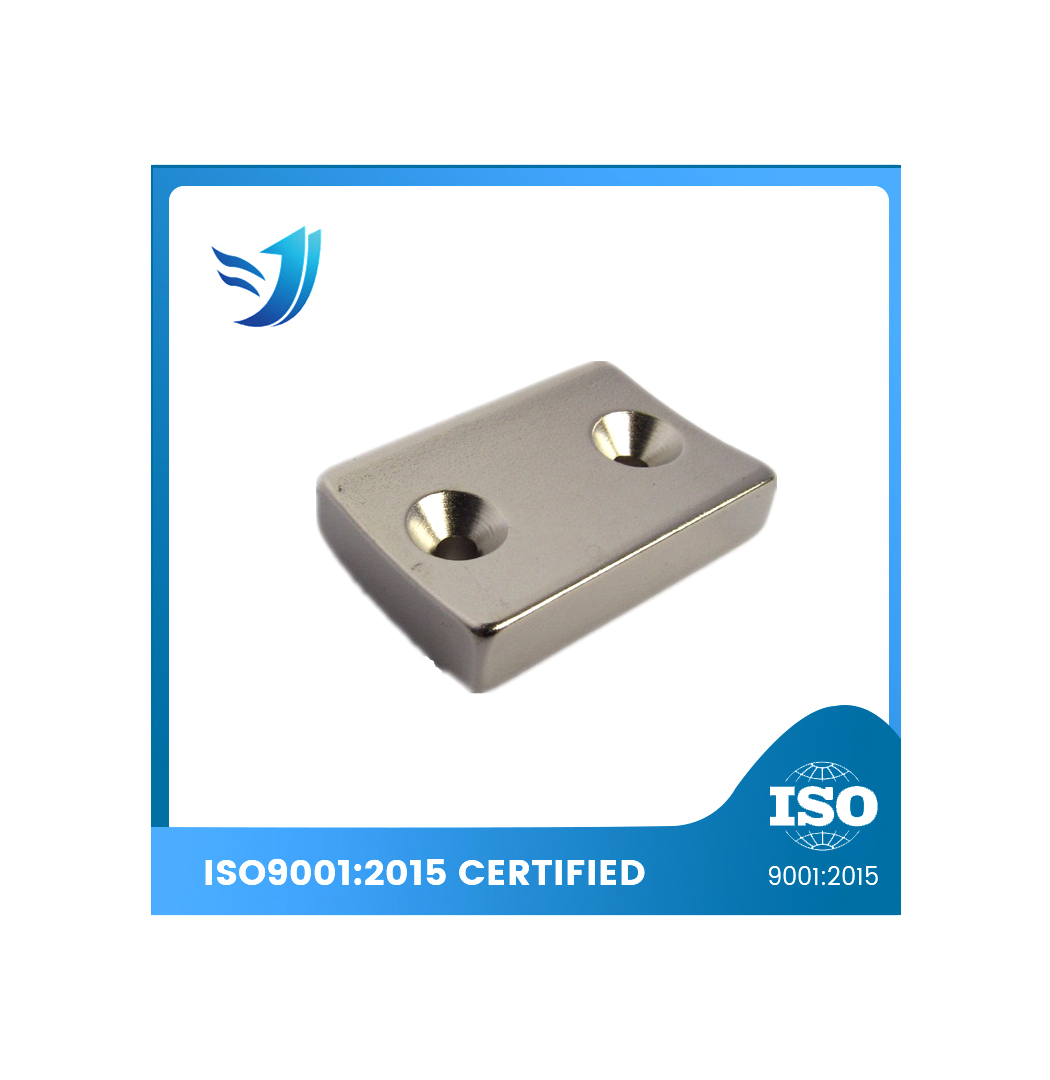

High-performance NdFeB magnets, also known as neodymium-iron-boron magnets, have revolutionized the field of magnetism and significantly impacted numerous industries. These permanent magnets are renowned for their exceptional magnetic properties, such as high remanence, coercivity, and energy product, which make them indispensable in a wide range of applications. Since their discovery in the 1980s, NdFeB magnets have continuously evolved, with ongoing research and development efforts aimed at enhancing their performance, reducing costs, and expanding their applications. This article provides an in-depth overview of high-performance NdFeB magnets, covering their composition, manufacturing processes, magnetic properties, applications, challenges, and future prospects.

 Composition and Structure

NdFeB magnets are primarily composed of neodymium (Nd), iron (Fe), and boron (B), with additional elements such as dysprosium (Dy), terbium (Tb), cobalt (Co), and gallium (Ga) often added to improve their magnetic properties and performance. The basic chemical formula of NdFeB magnets is Nd₂Fe₁₄B, which represents a tetragonal crystal structure. In this structure, neodymium atoms are located at specific positions within the unit cell, surrounded by iron atoms and boron atoms. The unique arrangement of these atoms gives rise to the strong magnetic properties of NdFeB magnets.

The addition of rare-earth elements like dysprosium and terbium is crucial for enhancing the coercivity of NdFeB magnets, especially at elevated temperatures. These elements substitute some of the neodymium atoms in the crystal lattice, modifying the magnetic anisotropy and reducing the likelihood of magnetic domain wall motion, thereby increasing the material's resistance to demagnetization. Cobalt is often added to improve the Curie temperature and thermal stability of the magnets, while gallium can enhance the grain boundary characteristics and overall magnetic performance. The precise control of the composition and microstructure of NdFeB magnets is essential for achieving high-performance characteristics tailored to specific applications.

 Manufacturing Processes

 Powder Metallurgy Process

The most common manufacturing method for high-performance NdFeB magnets is the powder metallurgy process. This process begins with the melting and casting of the raw materials to form an ingot. The ingot is then subjected to a series of mechanical and thermal treatments to break it down into fine powders. One of the key steps is hydrogen decrepitation (HD), where the ingot is exposed to hydrogen gas, causing it to crack and break into smaller pieces due to the formation of metal hydrides. Subsequently, the powders are further refined through a process called jet milling, which uses high-velocity gas jets to reduce the particle size to the desired range, typically in the sub-micron scale.

After the powder preparation, the next crucial step is the alignment and compaction of the magnetic powder. This is usually achieved by applying a strong magnetic field during the compaction process, which aligns the magnetic domains of the powder particles. The aligned powder is then compacted into a green compact using either cold isostatic pressing (CIP) or uniaxial pressing. The green compact is subsequently sintered at high temperatures, typically around 1000 - 1100°C, to densify the material and form a solid magnet. Sintering allows the particles to bond together through diffusion, improving the mechanical and magnetic properties of the magnet. Finally, the sintered magnet undergoes a heat treatment process, such as aging, to optimize its magnetic performance by refining the microstructure and enhancing the magnetic properties.

 Bonded NdFeB Magnet Manufacturing

In addition to the sintered NdFeB magnets produced by the powder metallurgy process, bonded NdFeB magnets are also widely used. Bonded NdFeB magnets are made by mixing NdFeB magnetic powder with a binder material, such as thermoplastics, thermosets, or elastomers. The mixture is then processed using various techniques, including injection molding, compression molding, or extrusion, to form the desired shape of the magnet. Bonded NdFeB magnets offer several advantages, such as design flexibility, dimensional accuracy, and corrosion resistance. They are often used in applications where complex shapes, lightweight, or cost-effective solutions are required, although their magnetic performance is generally lower than that of sintered NdFeB magnets.

 Magnetic Properties

 Remanence (Br)

Remanence is one of the key magnetic properties of NdFeB magnets and represents the magnetic flux density remaining in the magnet after the external magnetic field has been removed. High-performance NdFeB magnets can achieve remanence values ranging from 1.0 to 1.4 tesla (T), depending on the composition and manufacturing process. A higher remanence value indicates a stronger magnetic field generated by the magnet in the absence of an external field, which is essential for applications that require a strong magnetic pull or magnetic coupling. For example, in electric motors, a high remanence magnet can contribute to higher torque output and more efficient operation.

 Coercivity (Hc)

Coercivity measures the ability of a magnet to resist demagnetization in the presence of an external magnetic field. High-performance NdFeB magnets exhibit high coercivity values, typically ranging from 800 to 2000 kiloamperes per meter (kA/m). The coercivity of NdFeB magnets is influenced by factors such as the crystal structure, grain size, and the addition of rare-earth elements. As mentioned earlier, elements like dysprosium and terbium play a crucial role in enhancing the coercivity, especially at elevated temperatures. A high coercivity ensures that the magnet maintains its magnetic properties even in harsh environments or in the presence of strong external magnetic fields, making it suitable for applications such as wind turbines, magnetic separators, and medical devices.

 Energy Product (BH)max

The energy product is a measure of the amount of magnetic energy stored in a magnet per unit volume and is expressed in megojoules per cubic meter (MJ/m³). It is calculated as the product of the remanence and the coercivity at the point of maximum energy product on the demagnetization curve. High-performance NdFeB magnets can achieve energy product values ranging from 25 to 60 MJ/m³. A higher energy product indicates a more efficient use of the magnetic material, allowing for smaller and lighter magnet designs while still providing the required magnetic performance. This is particularly important in applications where space and weight are critical factors, such as in electric vehicles, consumer electronics, and aerospace components.

 Applications

 Electric Vehicles

The electric vehicle (EV) industry has been one of the major drivers of the demand for high-performance NdFeB magnets. These magnets are used in the electric motors of EVs, which convert electrical energy into mechanical energy to propel the vehicle. The high torque density and efficiency of NdFeB magnets enable the development of compact and powerful electric motors, which are essential for improving the performance and range of EVs. Additionally, NdFeB magnets are also used in other components of EVs, such as generators, starters, and magnetic sensors. As the global demand for EVs continues to grow rapidly, the market for NdFeB magnets in the automotive sector is expected to expand significantly in the coming years.

 Wind Turbines

Wind energy is another important application area for high-performance NdFeB magnets. In wind turbines, NdFeB magnets are used in the permanent magnet generators, which convert the mechanical energy of the rotating blades into electrical energy. The high magnetic performance of NdFeB magnets allows for the design of more efficient and reliable generators, reducing the size and weight of the turbine components. This, in turn, can lead to lower manufacturing costs, improved energy conversion efficiency, and increased power output of the wind turbines. With the increasing focus on renewable energy sources, the demand for NdFeB magnets in the wind energy sector is expected to remain strong in the long term.

 Consumer Electronics

High-performance NdFeB magnets are widely used in consumer electronics products, such as smartphones, laptops, tablets, hard disk drives, and speakers. In smartphones and laptops, NdFeB magnets are used in the vibration motors, cameras, and speakers, providing compact and powerful magnetic solutions. In hard disk drives, NdFeB magnets are used in the read-write heads and the actuator motors, enabling high-speed data access and accurate positioning. The miniaturization and high-performance requirements of consumer electronics have driven the development of smaller and more powerful NdFeB magnets, with continuous efforts to improve their performance and reduce costs.

 Medical Devices

In the medical field, high-performance NdFeB magnets play a crucial role in various applications. For example, in magnetic resonance imaging (MRI) systems, NdFeB magnets are used to generate the strong magnetic fields required for imaging. The high magnetic homogeneity and stability of NdFeB magnets are essential for producing high-quality MRI images. Additionally, NdFeB magnets are also used in other medical devices, such as magnetic drug delivery systems, where the magnets are used to guide the movement of drug-loaded particles to the targeted areas of the body. The use of NdFeB magnets in medical applications requires strict quality control and compliance with regulatory standards to ensure patient safety and effectiveness.

 Challenges

 Rare-Earth Element Supply and Price Volatility

One of the major challenges facing the NdFeB magnet industry is the supply and price volatility of rare-earth elements, especially neodymium and dysprosium. These elements are primarily mined in a few countries, and any disruptions in the supply chain can lead to significant price fluctuations. The increasing demand for NdFeB magnets, coupled with the limited availability of rare-earth resources, has raised concerns about the long-term sustainability of the industry. To address this challenge, efforts are being made to develop alternative magnet materials that do not rely on rare-earth elements or to reduce the consumption of rare-earth elements in NdFeB magnets through improved manufacturing processes and material design.

 Corrosion Resistance

NdFeB magnets are prone to corrosion, especially in humid and corrosive environments. The presence of iron in the magnet composition makes it susceptible to oxidation, which can lead to a degradation of the magnetic properties over time. To improve the corrosion resistance of NdFeB magnets, various surface coating technologies, such as electroplating, chemical plating, and physical vapor deposition, are commonly used. However, these coating processes add to the manufacturing cost and complexity, and there is still a need to develop more effective and cost-efficient corrosion protection solutions.

 High-Temperature Performance

Although the addition of rare-earth elements has improved the high-temperature performance of NdFeB magnets, they still face limitations in applications that require operation at very high temperatures. At elevated temperatures, the magnetic properties of NdFeB magnets can degrade due to factors such as thermal demagnetization and changes in the microstructure. Developing NdFeB magnets with enhanced high-temperature performance is an ongoing research area, with efforts focused on optimizing the composition, microstructure, and manufacturing processes to improve the thermal stability of the magnets.

 Future Prospects

Despite the challenges, the future of high-performance NdFeB magnets looks promising. With the continuous growth of industries such as electric vehicles, renewable energy, and consumer electronics, the demand for NdFeB magnets is expected to increase significantly in the coming years. Research and development efforts will continue to focus on improving the performance of NdFeB magnets, reducing costs, and addressing the challenges related to rare-earth element supply, corrosion resistance, and high-temperature performance.

Advancements in manufacturing technologies, such as additive manufacturing and nanotechnology, are also expected to open up new opportunities for the production of NdFeB magnets with improved properties and novel geometries. Additionally, the development of hybrid magnet systems that combine NdFeB magnets with other magnetic materials may offer enhanced performance and functionality for specific applications. Overall, high-performance NdFeB magnets will continue to play a vital role in driving technological innovation and sustainable development across a wide range of industries.

In conclusion, high-performance NdFeB magnets are remarkable materials with unique magnetic properties that have enabled numerous technological advancements. Their composition, manufacturing processes, magnetic properties, and diverse applications have been comprehensively explored in this article. While facing several challenges, the future of NdFeB magnets is bright, with continuous research and development expected to further enhance their performance and expand their applications in the global market.
