1. Introduction to Small Fans

Small fans have become an essential part of modern life, providing a convenient and portable solution for personal cooling. Whether it's a handheld fan for on - the - go comfort, a desktop fan for office use, or a small ceiling fan for a compact room, these devices offer immediate relief from heat. At the heart of their efficient operation lies the utilization of magnets, which play a crucial role in powering and optimizing the performance of small fans. This article will comprehensively explore the world of magnets in small fans, covering their functions, the underlying technology, and the impact on the overall design and usability of these devices.

1.1 The Popularity of Small Fans

The popularity of small fans can be attributed to their versatility and convenience. In a world where temperature control is essential for comfort and productivity, small fans offer a cost - effective and energy - efficient alternative to large - scale air - conditioning systems. Handheld fans are highly sought after by outdoor enthusiasts, travelers, and those attending outdoor events, as they can be easily carried in a bag or pocket. Desktop fans are a staple in offices, providing a localized cooling effect that helps employees stay focused and comfortable during work hours. Small ceiling fans, on the other hand, are ideal for small rooms, attics, or spaces where a full - sized ceiling fan may be too large or overpowering.

1.2 Basic Structure of Small Fans

Before delving into the role of magnets, it is important to understand the basic structure of small fans. A typical small fan consists of a motor, blades, a housing, and a power source. The motor is the core component that drives the rotation of the blades, which in turn generate the airflow. The housing protects the internal components and provides a stable base for the fan. The power source can be either a battery for portable fans or a direct electrical connection for stationary models. Magnets are an integral part of the motor, which is responsible for converting electrical energy into mechanical energy to make the fan blades spin.

2. The Function of Magnets in Small Fans

2.1 Motor Operation

The primary function of magnets in small fans is to facilitate the operation of the motor. Most small fans use electric motors, and among them, brushless direct - current (BLDC) motors are becoming increasingly popular due to their efficiency and longevity. In a BLDC motor, magnets play a crucial role in the interaction between the stator and the rotor.

The stator of a BLDC motor contains coils of wire, while the rotor is equipped with permanent magnets. When an electric current is passed through the coils in the stator, it generates a magnetic field. This magnetic field interacts with the magnetic field of the permanent magnets on the rotor. According to the principle of magnetic attraction and repulsion, the interaction between these two magnetic fields causes the rotor to rotate. The continuous change in the direction of the current in the stator coils, controlled by an electronic controller, ensures that the rotor continues to rotate in a consistent direction, driving the fan blades.

This magnetic interaction in the motor is what enables the small fan to operate smoothly and efficiently. Compared to traditional brushed motors, BLDC motors with magnets offer several advantages. They have a longer lifespan because there are no brushes to wear out, resulting in less maintenance. They also operate more quietly, as there is no friction between the brushes and the commutator, making them suitable for use in quiet environments such as bedrooms and libraries.

2.2 Speed Control

Magnets also contribute significantly to the speed control of small fans. In many small fan designs, the speed of the motor can be adjusted by varying the strength or frequency of the electrical current supplied to the stator coils. By changing the current, the magnetic field generated by the stator can be modified, which in turn affects the interaction with the magnets on the rotor.

For example, reducing the current will weaken the magnetic field of the stator, resulting in a slower rotation of the rotor and thus a lower fan speed. On the other hand, increasing the current will strengthen the magnetic field, causing the rotor to spin faster and increasing the fan's airflow. Some small fans use electronic speed controllers that can precisely regulate the current, allowing for multiple speed settings. This feature gives users the flexibility to adjust the fan speed according to their comfort level and the environmental conditions.

In addition to controlling the speed through current adjustment, some advanced small fans may also use magnetic sensors to monitor the rotational speed of the motor. These sensors can provide feedback to the control system, which can then make real - time adjustments to maintain a consistent speed even under varying loads or power conditions. This ensures that the fan operates stably and provides a reliable cooling performance.

2.3 Energy Efficiency

The use of magnets in small fan motors significantly improves energy efficiency. As mentioned earlier, BLDC motors with magnets are more efficient than traditional brushed motors. The magnetic interaction between the stator and rotor in a BLDC motor allows for a more direct and efficient conversion of electrical energy into mechanical energy. There is less energy loss due to friction (as there are no brushes) and less heat generation, which means that more of the electrical energy is actually used to drive the rotation of the fan blades.

This energy - efficient operation has several benefits. Firstly, it reduces the power consumption of the small fan, which is especially important for battery - powered portable fans. A more energy - efficient fan can run for a longer time on a single battery charge, providing extended cooling comfort without the need for frequent recharging. For fans connected to the electrical grid, energy efficiency means lower electricity bills, making them a more cost - effective cooling solution in the long run.

Moreover, the reduced energy consumption also has environmental implications. With the increasing focus on sustainability and reducing carbon footprints, energy - efficient small fans contribute to a greener lifestyle. By using less electricity, they help conserve energy resources and reduce the demand for power generation, which in turn can lead to a decrease in greenhouse gas emissions associated with power production.

3. The Technology Behind Magnets in Small Fans

3.1 Types of Magnets Used

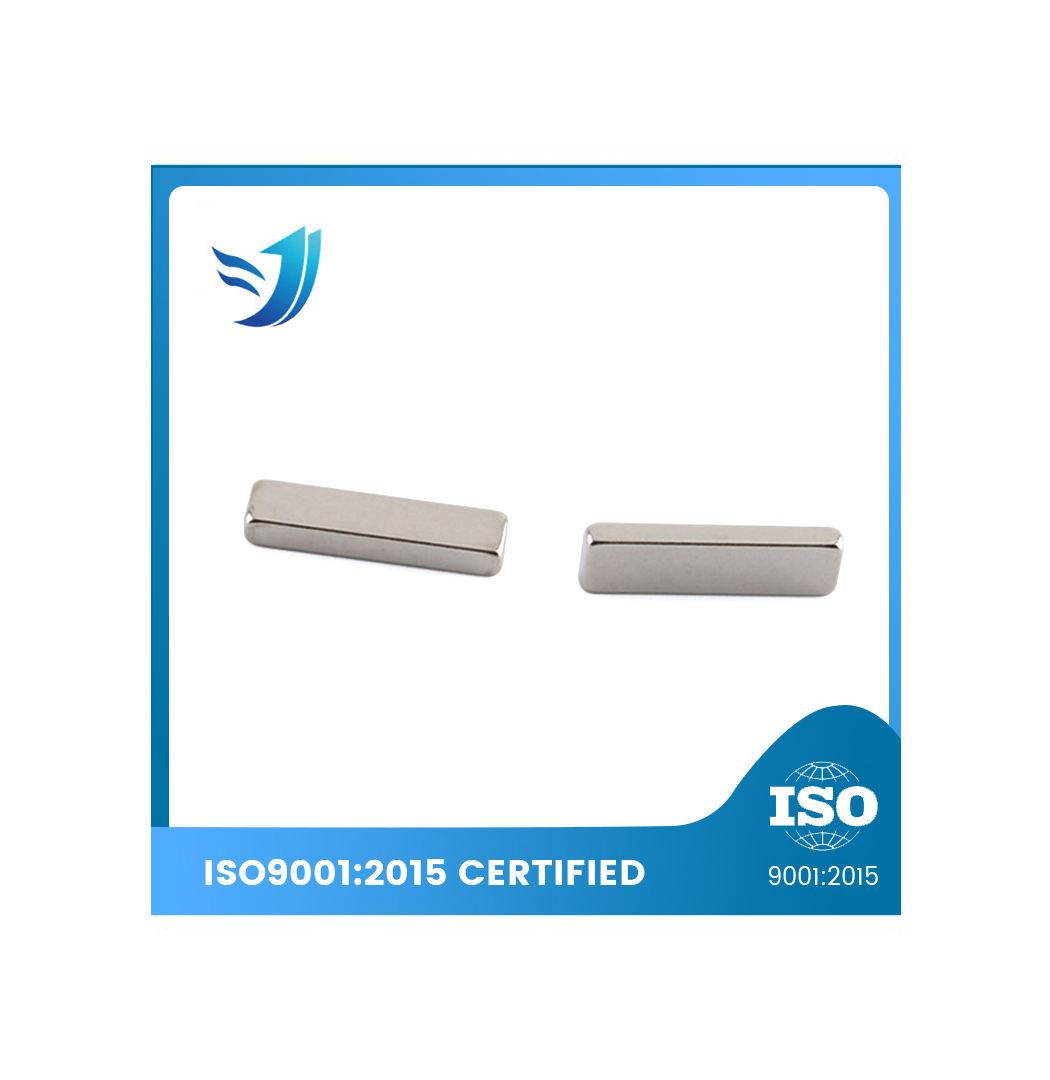

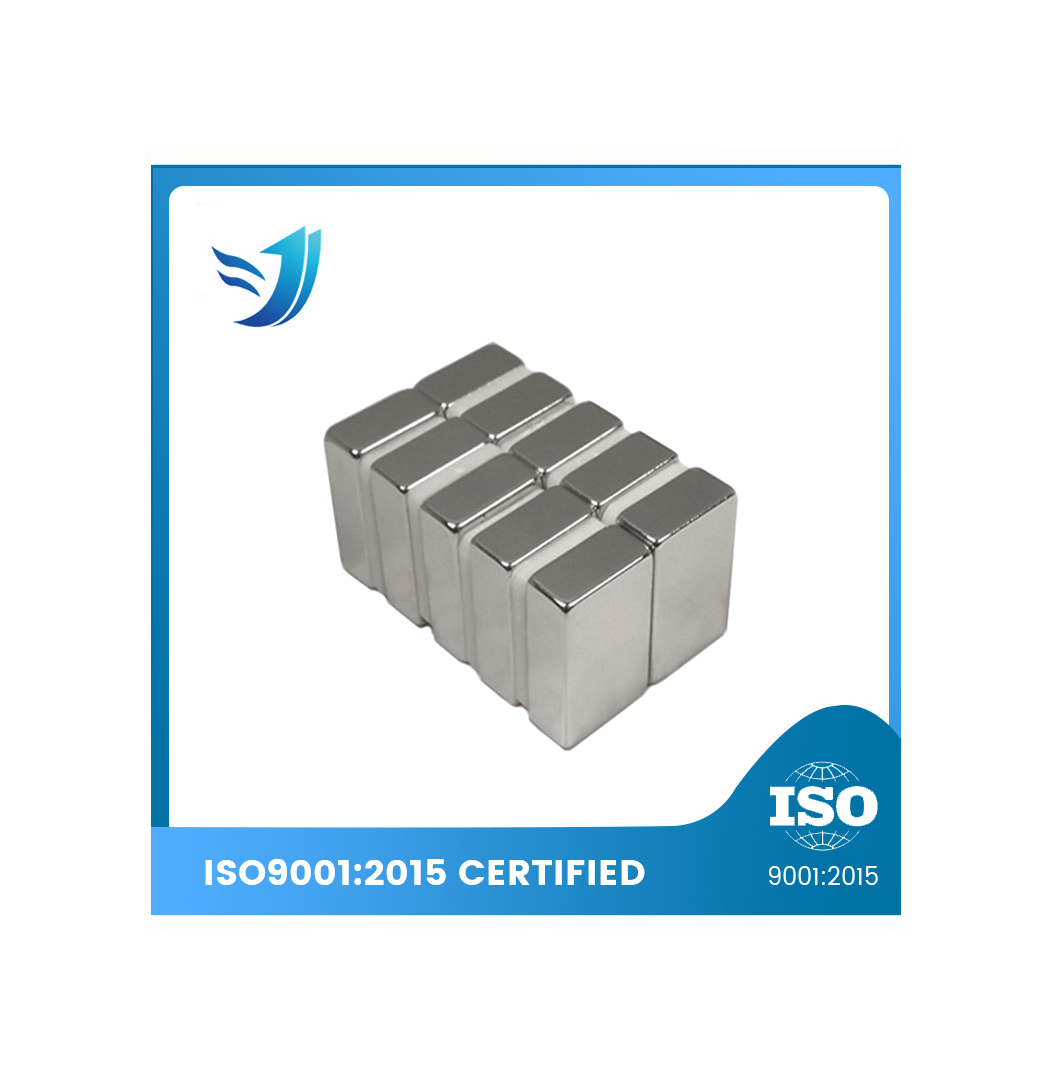

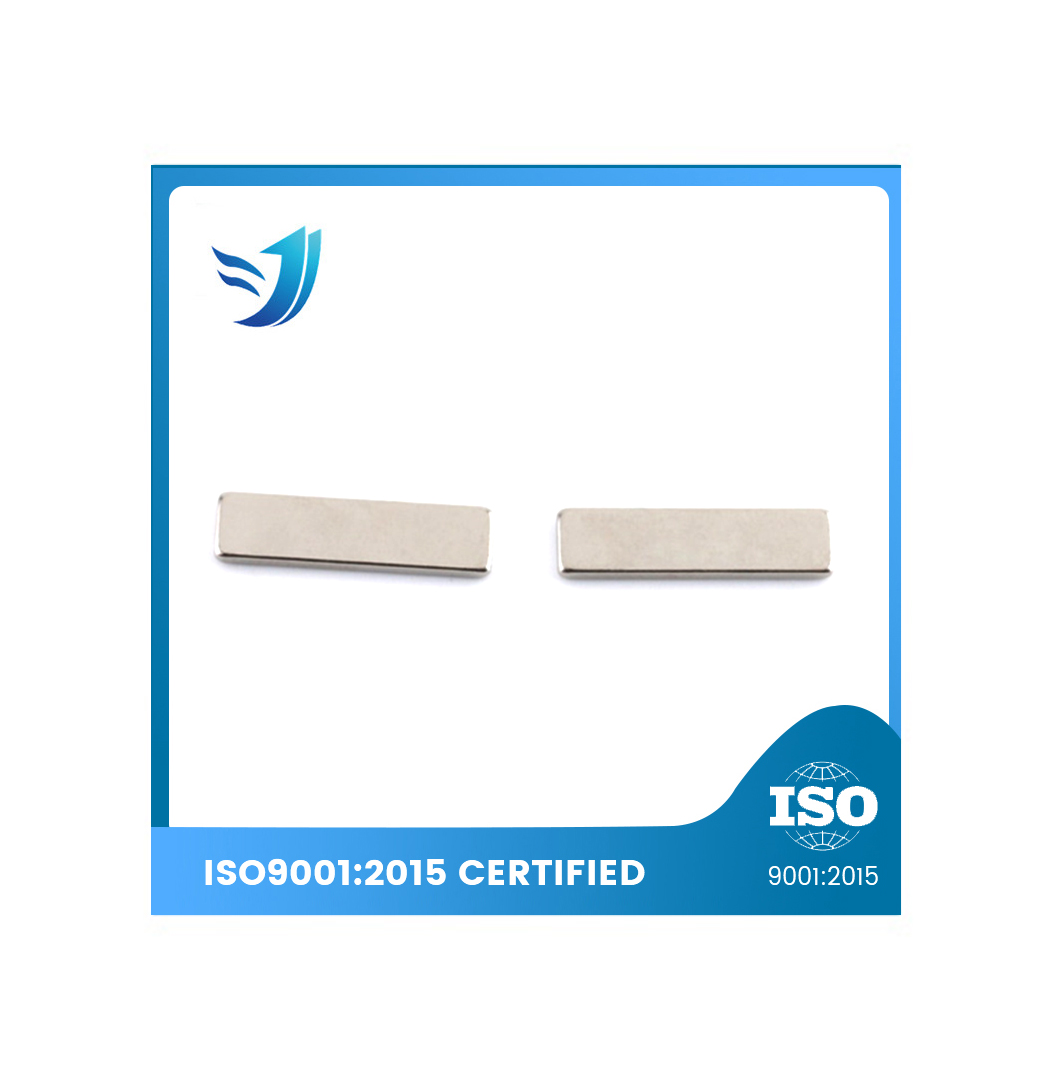

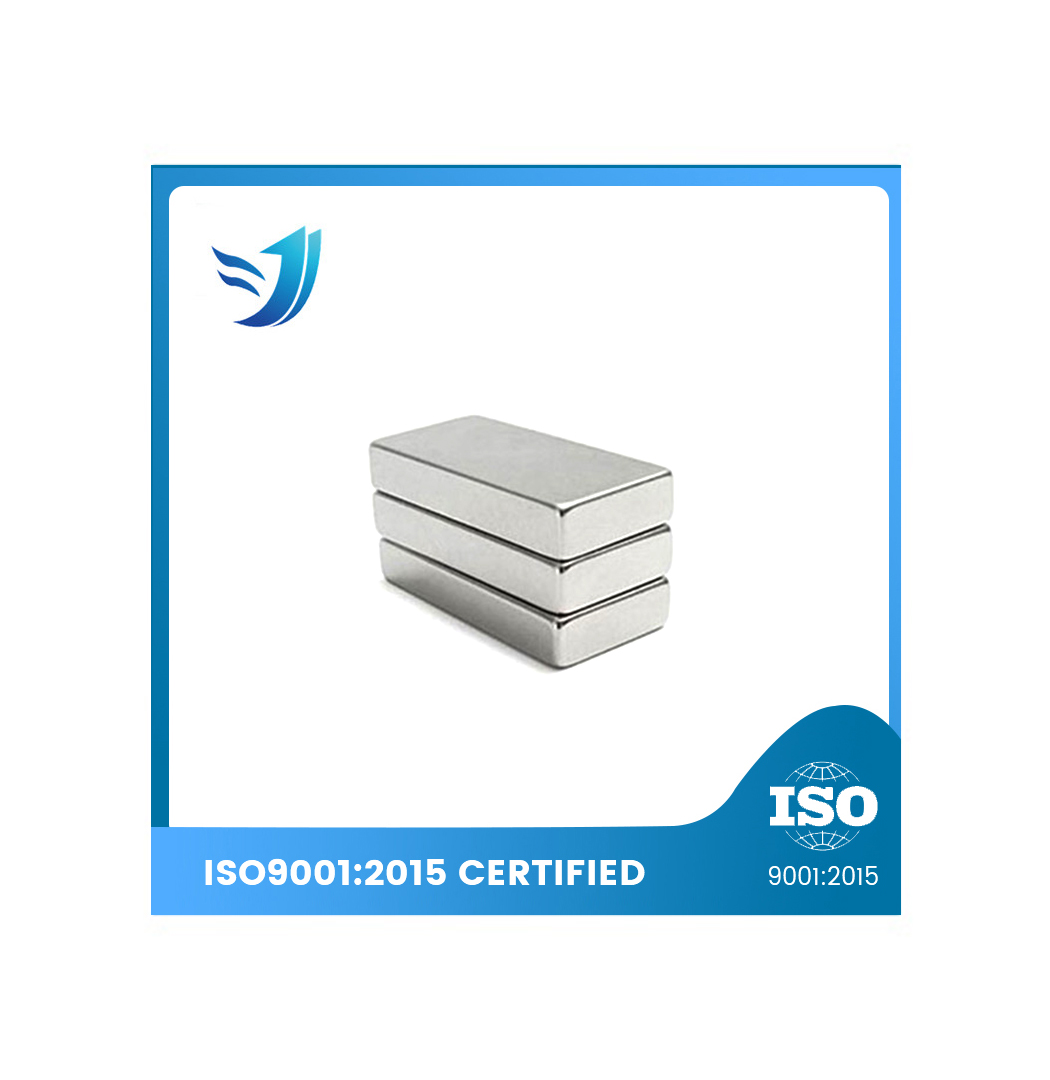

Several types of magnets are commonly employed in small fans, each with its own unique properties and advantages. Neodymium magnets are one of the most popular choices due to their extremely high magnetic strength. These magnets, made from an alloy of neodymium, iron, and boron, can generate a strong magnetic field in a relatively small size. Their high magnetic strength allows for a more compact motor design, which is crucial for small fans where space is limited.

Another type of magnet used in small fans is ferrite magnets, also known as ceramic magnets. Ferrite magnets are made from iron oxide and other metallic oxides. They are less expensive than neodymium magnets and have good resistance to corrosion. Although they have a lower magnetic strength compared to neodymium magnets, ferrite magnets are suitable for applications where a moderate magnetic force is sufficient, such as in some basic small fan models or in situations where cost - effectiveness is a priority.

Samarium - cobalt magnets are also used in certain high - performance small fans. These magnets offer excellent temperature stability and high magnetic strength, making them ideal for applications where the fan may be exposed to high temperatures, such as in industrial settings or in areas with extreme heat. However, samarium - cobalt magnets are relatively expensive, which limits their use to more specialized and high - end small fan products.

3.2 Magnetic Design and Engineering

The design and engineering of the magnetic system in small fans require careful consideration of multiple factors. One of the key aspects is the magnetic field distribution. The magnetic field generated by the magnets in the motor needs to be evenly distributed to ensure smooth and stable rotation of the rotor. Engineers use computer - aided design (CAD) software and magnetic simulation tools to model and optimize the magnetic field configuration.

The strength of the magnets also needs to be carefully selected. If the magnets are too weak, the motor may not generate enough torque to drive the fan blades at the desired speed or may struggle to operate under heavy loads. On the other hand, if the magnets are too strong, it can increase the cost and size of the motor without necessarily providing a proportional increase in performance. Additionally, the orientation of the magnets is crucial. Proper alignment of the magnetic poles ensures the correct interaction between the stator and rotor, which is essential for the efficient operation of the motor.

In addition to the magnets themselves, the design of the motor housing and other components also affects the magnetic performance. The materials used in the housing should not interfere with the magnetic field. Non - magnetic materials such as plastic or certain types of aluminum are often preferred to avoid any disruption to the magnetic interaction within the motor.

3.3 Integration with Other Components

Magnets in small fans need to be integrated seamlessly with other components to ensure overall functionality. The motor, which contains the magnets, needs to be properly connected to the fan blades. The connection between the motor shaft and the blades must be secure to prevent any wobbling or detachment during operation. This often involves the use of precision - engineered couplings or fasteners that can withstand the rotational forces generated by the motor.

The power source also needs to be integrated with the motor in a way that allows for efficient energy transfer. For battery - powered fans, the battery management system needs to work in harmony with the motor controller to regulate the current flow and ensure optimal performance. In the case of fans connected to the electrical grid, the power supply unit needs to be designed to provide a stable and appropriate voltage to the motor, taking into account the magnetic requirements of the motor for smooth operation.

Furthermore, any additional features such as speed control buttons, oscillation mechanisms, or remote - control receivers need to be integrated with the overall fan system without interfering with the magnetic operation of the motor. This requires careful planning and engineering to ensure that all components work together cohesively.

4. Safety Considerations of Magnets in Small Fans

4.1 Ingestion Risk

Similar to other devices with small magnets, small fans can pose an ingestion risk, especially to children and pets. Some small fans may have small magnetic components that could potentially become loose over time due to wear and tear, vibration, or improper handling. If these small magnets are ingested, they can cause serious health problems.

When multiple magnets are swallowed, they can attract each other through the intestinal walls, leading to bowel obstruction, perforation, and other severe internal injuries. To mitigate this risk, fan manufacturers are taking several precautions. They are using stronger and more secure fastening methods to keep the magnetic components in place. Additionally, some manufacturers are designing fans with enclosures that prevent access to the internal magnetic parts, reducing the likelihood of magnets becoming dislodged and ingested.

Clear warning labels are also being included on small fan packaging to alert users, especially parents, of the potential danger. These labels provide important information about the risk of ingestion and instructions on how to properly maintain and handle the fan to prevent such incidents.

4.2 Interference with Electronic Devices

Magnets in small fans can generate magnetic fields that may interfere with the operation of nearby electronic devices. For example, the magnetic field from a small fan's motor could disrupt the functionality of credit cards, which contain magnetic stripes, or cause data corruption in some portable hard drives or other magnetic storage devices.

In more critical situations, the magnetic field may also interfere with medical devices such as pacemakers or insulin pumps. For patients relying on these devices, even a small amount of magnetic interference can have serious consequences for their health. To address this issue, manufacturers are working on reducing the magnetic field leakage from small fan motors. This may involve using better magnetic shielding materials or optimizing the motor design to contain the magnetic field within the motor itself.

Users are also advised to keep a safe distance between small fans and sensitive electronic or medical devices. In some cases, manufacturers may provide specific guidelines on the safe operating distances to ensure that the fan can be used without causing any interference.

4.3 Long - Term Reliability and Degradation

The long - term reliability of magnets in small fans is an important safety consideration. Over time, magnets can lose their magnetic strength due to various factors such as exposure to high temperatures, mechanical stress, or aging. If the magnets in a small fan motor weaken, it can lead to a decrease in motor performance.

A weakened magnetic field may cause the motor to rotate less efficiently, resulting in a lower fan speed, increased noise, or even motor failure. To ensure the long - term reliability of small fans, manufacturers use high - quality magnets that are resistant to degradation. They also subject the fans to rigorous testing during the design and production process to simulate long - term use and identify any potential issues related to magnetic degradation.

Regular maintenance by users can also help prolong the lifespan of the magnets in small fans. Keeping the fan clean, avoiding excessive vibration or shock, and using the fan within the recommended temperature range can all contribute to maintaining the performance and safety of the small fan over time.

5. Future Trends and Innovations in Small Fan Magnet Technology

5.1 Smart Magnetic Systems

The future of magnets in small fans may involve the development of smart magnetic systems. These systems could be integrated with sensors and microcontrollers to offer enhanced functionality. For example, a smart small fan could be equipped with temperature sensors that detect the ambient temperature. Based on the temperature reading, the microcontroller could automatically adjust the magnetic field strength in the motor to control the fan speed, providing optimal cooling without the need for manual adjustment.

In addition, smart magnetic systems could be connected to home automation networks. This would allow users to control their small fans remotely using a smartphone app or voice - activated devices. For instance, users could turn on or off their small fans, adjust the speed, or set a schedule for operation from anywhere in the house, enhancing convenience and comfort.

5.2 Improved Magnetic Materials

Ongoing research into new magnetic materials is likely to drive innovation in small fan technology. Scientists are constantly exploring materials with superior magnetic properties, such as higher magnetic strength, better temperature stability, and improved resistance to environmental factors.

New magnetic materials could lead to the development of more compact and powerful small fan motors. For example, a material with higher magnetic strength could allow for a smaller motor size while still generating the same amount of torque, enabling even more portable and sleek small fan designs. Materials with better temperature stability could ensure that the fan operates reliably in a wider range of environmental conditions, from extremely hot to cold temperatures.

5.3 Enhanced Energy - Saving Features

With the growing emphasis on energy conservation, future small fans are likely to feature even more advanced energy - saving features related to magnets. For example, new technologies may be developed to optimize the magnetic interaction in the motor further, reducing energy losses and improving overall efficiency.

Some potential innovations could include the use of variable magnetic field strength based on the actual cooling demand. When less cooling is required, the magnetic field could be reduced, consuming less power. Additionally, regenerative braking systems could be incorporated, where the kinetic energy generated during the fan's deceleration is converted back into electrical energy and stored, further enhancing the energy - saving capabilities of small fans.

In conclusion, magnets play a vital and multi - faceted role in small fans. From enabling efficient motor operation and speed control to contributing to energy efficiency, their impact on the performance and usability of small fans is significant. While there are safety considerations associated with magnets, ongoing research and technological advancements are likely to address these issues and drive the development of more innovative, safe, and energy - efficient small fan products in the future.
