1. Introduction to Magnets in Small Electric Motors

Small electric motors are ubiquitous in modern life, powering a vast array of devices from handheld gadgets and home appliances to automotive components and industrial equipment. At the heart of these motors, magnets play a crucial and often transformative role. Magnets in small electric motors are not just simple components; they are the driving force behind the conversion of electrical energy into mechanical energy, enabling motors to generate motion efficiently.

The use of magnets in small electric motors has evolved significantly over the years, driven by advancements in materials science, engineering design, and the increasing demand for more compact, efficient, and powerful motors. From traditional ferrite magnets to the high - performance neodymium magnets, the choice of magnetic materials and their integration within motor designs have a profound impact on the motor's speed, torque, efficiency, and overall performance. Understanding the principles, applications, and future trends of magnets in small electric motors is essential for engineers, designers, and anyone interested in the mechanics of modern electromechanical devices.

2. The Scientific Principles of Magnets in Small Electric Motors

2.1 Basic Principles of Electromagnetism

The operation of small electric motors with magnets is based on the fundamental principles of electromagnetism. When an electric current passes through a wire, it generates a magnetic field around the wire. This phenomenon, discovered by Hans Christian Oersted, forms the basis for creating electromagnets, which are used in many small electric motors. An electromagnet consists of a coil of wire wound around a core, and when current flows through the coil, it acts like a magnet, with a north and a south pole.

In a small electric motor, the interaction between permanent magnets (or electromagnets) and the magnetic fields generated by the current - carrying coils is what produces the rotational force. According to Ampere's law, the magnetic field around a current - carrying conductor exerts a force on other magnetic fields. This force is used to create a torque that causes the motor's rotor to spin. The direction of the force can be determined using the right - hand rule, which helps engineers design motors with precise control over the direction of rotation.

2.2 Types of Magnets Used in Small Electric Motors

There are two main types of magnets commonly used in small electric motors: permanent magnets and electromagnets.

Permanent Magnets:

 - Ferrite Magnets: Ferrite magnets, also known as ceramic magnets, are made from iron oxide and other metallic oxides. They are relatively inexpensive, have good resistance to corrosion, and are commonly used in low - cost small electric motors. Ferrite magnets have a lower magnetic strength compared to some other types, but their stability and affordability make them suitable for applications where high torque is not a primary requirement, such as in small fans or simple toys.

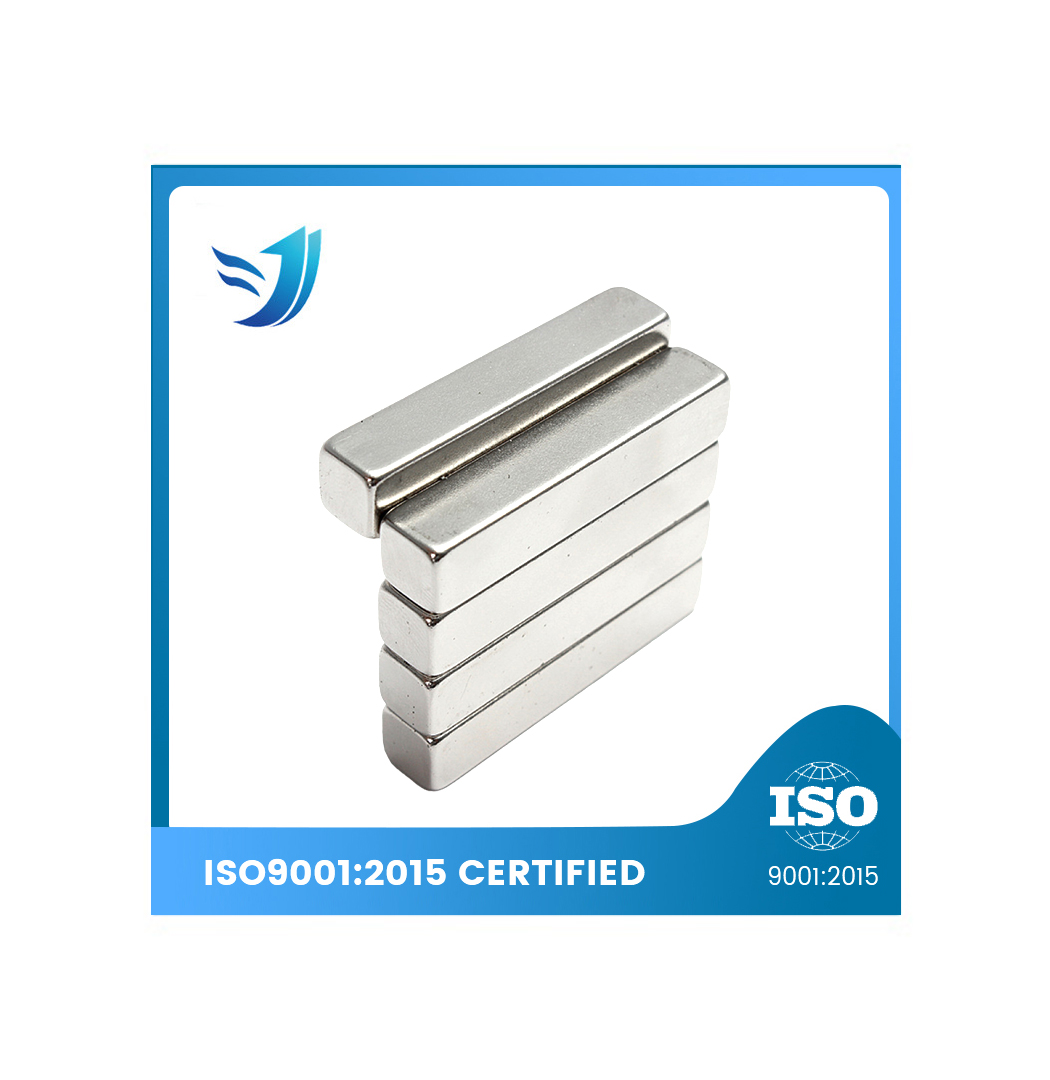

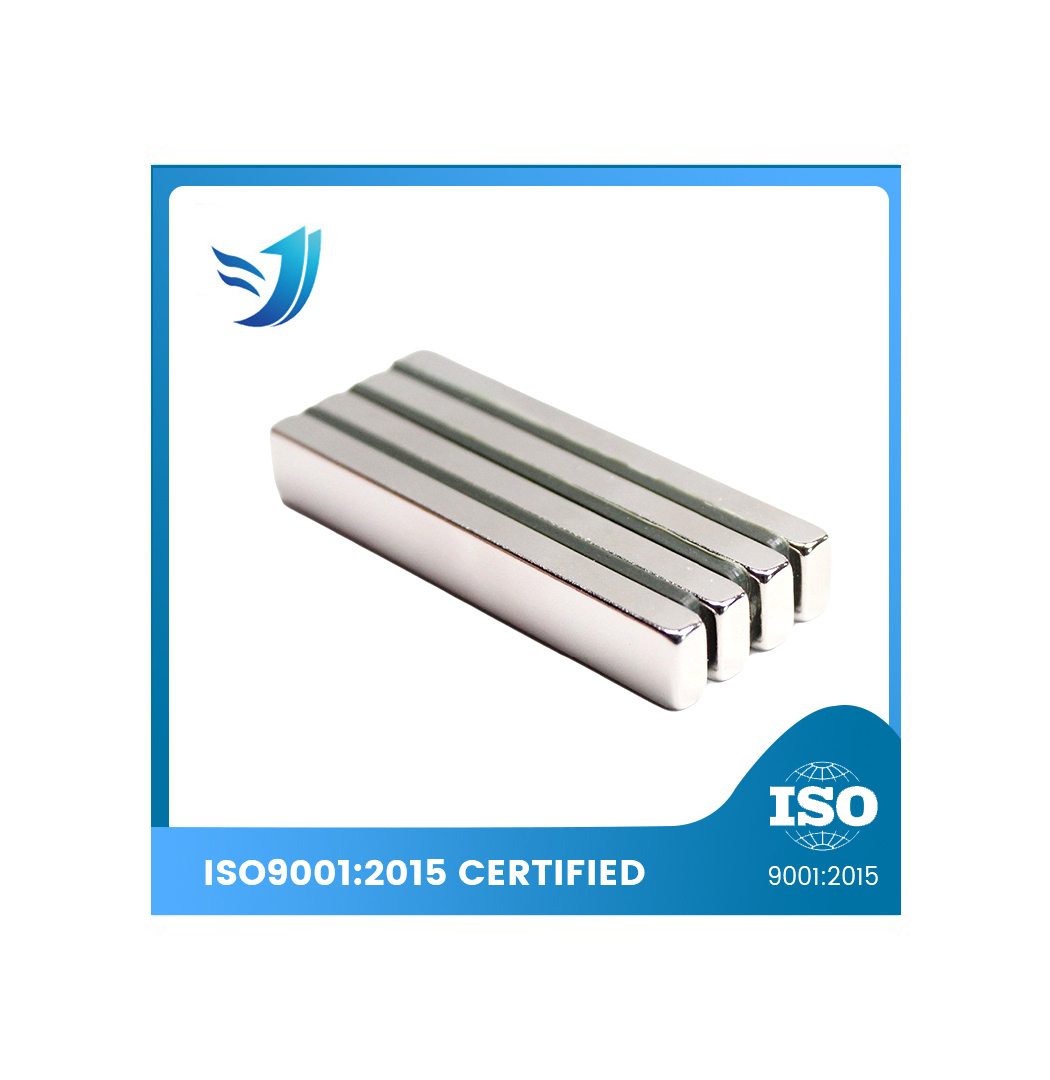

 - Neodymium Magnets: Neodymium magnets, composed of neodymium, iron, and boron (NdFeB), are among the strongest permanent magnets available. They offer high magnetic flux density and coercivity, which means they can withstand strong external magnetic fields without losing their magnetization. Neodymium magnets are widely used in high - performance small electric motors, such as those in drones, power tools, and high - end robotics, where a high power - to - size ratio is crucial.

 - Samarium - Cobalt Magnets: Samarium - cobalt (SmCo) magnets are known for their high operating temperature range and excellent resistance to demagnetization. They are often used in applications where the motor needs to operate in harsh environments or at elevated temperatures, such as in aerospace and military - grade small electric motors.

Electromagnets:

Electromagnets in small electric motors are created by passing an electric current through a coil of wire. The strength of an electromagnet can be adjusted by changing the amount of current flowing through the coil, the number of turns in the coil, or the type of core material. This makes electromagnets highly versatile, as they can be turned on and off, and their magnetic strength can be precisely controlled. In small electric motors, electromagnets are often used in combination with permanent magnets to optimize performance, such as in brushless DC motors where the electromagnets in the stator interact with the permanent magnets in the rotor to produce smooth and efficient rotation.

2.3 Magnetic Field Interactions and Torque Generation

In a small electric motor, the interaction between the magnetic fields of the permanent magnets (or electromagnets) and the current - carrying coils generates torque. When current flows through the coils in the stator (the stationary part of the motor), it creates a magnetic field that interacts with the magnetic field of the rotor's permanent magnets. This interaction results in a force that acts perpendicular to both the magnetic field lines and the direction of the current, according to the Lorentz force law.

The torque generated in the motor depends on several factors, including the strength of the magnetic fields, the current flowing through the coils, the number of turns in the coils, and the geometry of the motor. By carefully designing these parameters, engineers can optimize the torque output of the small electric motor for specific applications. For example, increasing the current through the coils or using stronger magnets can increase the torque, but it also needs to be balanced with considerations such as power consumption and heat generation.

3. Applications of Magnets in Small Electric Motors

3.1 Consumer Electronics

Small electric motors with magnets are essential components in consumer electronics. In smartphones, for instance, tiny motors with magnets are used for features such as vibration motors. These motors, often linear resonant actuators (LRAs) or eccentric rotating mass (ERM) motors, rely on magnetic forces to generate vibrations. In an LRA, a permanent magnet is attached to a spring - mass system, and an electromagnet is used to drive the system into resonance, creating a precise and controllable vibration. This vibration is used for notifications, haptic feedback in games, and other interactive features.

In laptops and tablets, small fans with magnet - based motors are used for cooling. These fans need to be quiet, efficient, and compact. Ferrite or neodymium magnets are used in the motors of these fans to provide the necessary magnetic force to rotate the fan blades, keeping the internal components of the devices cool and preventing overheating. Additionally, in devices like digital cameras, small motors with magnets are used to drive the autofocus mechanisms, zoom lenses, and image stabilization systems, ensuring smooth and accurate operation.

3.2 Home Appliances

Home appliances are another major area where small electric motors with magnets find extensive use. In washing machines, the motor that drives the drum rotation is often a brushless DC motor with permanent magnets. The high torque and efficiency of these motors allow for effective agitation and spinning of the laundry. Neodymium magnets in the rotor of the motor provide the strong magnetic field required to generate the necessary torque, while the stator's electromagnets are precisely controlled to vary the speed and direction of the drum.

Refrigerators also rely on small electric motors with magnets. Compressor motors, which are crucial for the cooling cycle, use magnets to convert electrical energy into mechanical energy to compress the refrigerant. These motors need to be highly reliable and energy - efficient, and the use of advanced magnetic materials like neodymium magnets helps achieve these goals. In addition, small motors with magnets are used in fans for circulating air within the refrigerator, ensuring even cooling.

Other home appliances such as vacuum cleaners, blenders, and coffee grinders also use small electric motors with magnets. In vacuum cleaners, the motor needs to generate high - speed rotation to create the suction power, and magnets play a key role in enabling this. Blenders and coffee grinders require motors with high torque to crush and grind the ingredients effectively, and the magnetic components in these motors are designed to meet these specific performance requirements.

3.3 Automotive and Transportation

In the automotive industry, small electric motors with magnets are used in a variety of applications. Electric power steering (EPS) systems use small brushless DC motors with permanent magnets. These motors assist the driver in steering the vehicle by providing additional torque based on the vehicle's speed and the driver's input. The use of magnets in EPS motors allows for precise control, energy efficiency, and compact design, reducing the overall weight of the vehicle.

Automotive starter motors also rely on magnets. These motors need to generate a large amount of torque in a short period to start the engine. Electromagnets in the starter motor's solenoid are used to engage the starter gear with the engine's flywheel, and the magnetic forces within the motor's main winding then provide the necessary rotational force to start the engine.

In addition, in hybrid and electric vehicles, small electric motors with magnets are used for various functions such as powering the air conditioning system, window regulators, and seat adjustment mechanisms. The development of high - performance magnets has been a key factor in the advancement of electric vehicle technology, enabling more efficient and powerful motors for propulsion.

3.4 Industrial and Robotics

In industrial settings, small electric motors with magnets are used in a wide range of equipment. For example, in conveyor systems, small motors with magnets are used to drive the rollers, ensuring smooth and reliable movement of materials. These motors need to be durable and able to operate continuously under various loads, and the use of suitable magnetic materials helps meet these requirements.

In the field of robotics, small electric motors with magnets are the building blocks for robotic movement. Robotic arms, for instance, use multiple small motors at each joint to achieve precise and coordinated movement. High - torque, high - precision motors with neodymium magnets are often used to enable the robotic arm to perform complex tasks such as pick - and - place operations in manufacturing or delicate surgical procedures in medical robotics. The ability to control the magnetic fields precisely in these motors allows for accurate control of the robotic movements, making them highly versatile and efficient in industrial and robotic applications.

4. Design and Selection of Magnets for Small Electric Motors

4.1 Performance Requirements

When designing or selecting magnets for small electric motors, several performance requirements need to be considered. Torque: The required torque output of the motor depends on the application. For example, a motor used in a power tool will need a much higher torque compared to a motor in a small desk fan. The magnetic strength and design of the magnets play a crucial role in determining the torque. Stronger magnets, such as neodymium magnets, can generate higher torque, but they also come at a higher cost.

Speed: The desired operating speed of the motor also influences the magnet selection. Some applications require high - speed rotation, while others need slower, more controlled speeds. The magnetic field interaction within the motor affects the speed, and engineers need to design the magnet - coil configuration to achieve the appropriate speed range.

Efficiency: Energy efficiency is a key consideration, especially in applications where the motor will be operating for long periods or in battery - powered devices. Magnets with lower energy losses and higher magnetic performance contribute to more efficient motor operation. Neodymium magnets, for example, are known for their high efficiency due to their strong magnetic fields and low hysteresis losses.

4.2 Material Selection

As discussed earlier, the choice of magnetic material is critical. Ferrite magnets are a cost - effective option for applications where performance requirements are not extremely high. They are suitable for basic consumer products and some low - power industrial applications. However, for high - performance applications, neodymium magnets are often the preferred choice. Despite their higher cost, their superior magnetic properties, such as high remanence (the magnetic field remaining in the magnet after the external magnetic field is removed) and coercivity, make them ideal for motors that need high torque, high speed, and high efficiency.

Samarium - cobalt magnets are selected when the motor needs to operate in harsh environments, such as high - temperature conditions or in the presence of strong external magnetic fields. The material selection also needs to consider factors such as the magnet's durability, resistance to corrosion, and its environmental impact.

4.3 Magnet Geometry and Configuration

The geometry and configuration of the magnets within the small electric motor are also important design considerations. The shape of the magnet, whether it is a disc, ring, or a more complex shape, can affect the magnetic field distribution and the interaction with the coils. For example, in a radial - flux motor, ring - shaped magnets are often used in the rotor to create a radial magnetic field that interacts with the stator coils.

The arrangement of the magnets, such as the number of poles and their spacing, also has a significant impact on the motor's performance. A higher number of poles can result in smoother rotation and better torque characteristics, but it also increases the complexity of the motor design. Engineers use computer - aided design (CAD) and finite - element analysis (FEA) tools to optimize the magnet geometry and configuration for the best performance, taking into account factors such as magnetic field strength, flux density, and torque ripple.

5. Maintenance and Troubleshooting of Magnets in Small Electric Motors

5.1 Regular Maintenance

Regular maintenance of small electric motors with magnets is essential to ensure their long - term performance. One important aspect of maintenance is keeping the motor clean. Dust, debris, and moisture can accumulate on the magnets and other components, affecting the magnetic field and the overall operation of the motor. Cleaning the motor with a soft brush and a suitable cleaning agent (avoiding solvents that could damage the magnets or other materials) can prevent these issues.

Inspecting the magnets for any signs of damage, such as cracks or chipping, is also crucial. Damaged magnets can lose their magnetic strength or cause uneven magnetic field distribution, leading to motor inefficiencies or failures. If any damage is detected, the magnets may need to be replaced. Additionally, lubricating the motor's moving parts, such as bearings, can reduce friction and prevent premature wear, which can also impact the performance of the magnets within the motor.

5.2 Common Issues and Solutions

One common issue with magnets in small electric motors is demagnetization. This can occur due to exposure to high temperatures, strong external magnetic fields, or physical damage. Demagnetized magnets will result in reduced torque and efficiency of the motor. To address this issue, if the demagnetization is not severe, the magnets may be re - magnetized using a suitable magnetizing device. However, if the damage is extensive, the magnets will need to be replaced.

Another problem is magnetic interference, which can occur when the magnetic fields of the motor interact with other nearby magnetic components or devices. This can cause erratic motor behavior or interfere with the operation of other electronic systems. Shielding the motor with magnetic - permeable materials or repositioning the motor can help reduce magnetic interference.

In some cases, the magnets may become loose within the motor, causing vibrations and noise. Tightening the mounting screws or using adhesives to secure the magnets can solve this problem. Regular inspection and timely troubleshooting of these common issues can extend the lifespan of small electric motors with magnets and ensure their reliable operation.

6. Future Developments of Magnets in Small Electric Motors

6.1 Advancements in Magnetic Materials

The field of magnetic materials research is constantly evolving, and new developments are expected to revolutionize the use of magnets in small electric motors. Researchers are exploring new materials and manufacturing techniques to create magnets with even higher magnetic performance, lower cost, and better environmental sustainability.

For example, the development of rare - earth - free magnets is an active area of research. Since rare - earth elements, which are used in neodymium and samarium - cobalt magnets, are scarce and their extraction has environmental and geopolitical challenges, finding alternative materials is crucial. Some promising candidates include iron - based permanent magnets and composites that can achieve high magnetic properties without relying on rare - earth elements.

In addition, nanotechnology is being applied to magnetic materials. By manipulating materials at the nanoscale, it is possible to create magnets with enhanced magnetic properties, such as higher coercivity and remanence, as well as better thermal stability. These advancements in magnetic materials will lead to smaller, more powerful, and more efficient small electric motors in the future.

6.2 Integration with Smart Technologies

As the Internet of Things (IoT) and Industry 4.0 continue to grow, small electric motors are becoming more intelligent and connected. Magnets in these motors can be integrated with sensors and control systems to enable real - time monitoring and optimization of motor performance. For example, magnetic sensors can be used to detect the magnetic field strength and orientation of the magnets within the motor, providing valuable information about the motor's health and operation.

This data can be used to predict maintenance needs, adjust the motor's operating parameters for optimal efficiency, or even communicate with other devices in a network. In the future, small electric motors with magnets may be able to self - diagnose issues, adjust their performance based on the application requirements, and be remotely controlled, making them more versatile and efficient in smart manufacturing, smart homes, and other connected environments.

6.3 Miniaturization and High - Power Density Designs

The trend towards miniaturization in electronics and mechanical systems is also driving the development of smaller and more powerful small electric motors. Magnets play a key role in achieving high - power density designs. By using advanced magnetic materials and optimized magnet designs, engineers can create motors that deliver high torque and power in a compact form factor.

This is particularly important in applications such as wearable electronics, medical implants, and micro - robotics, where space is extremely limited. The development of micro - and nano - scale magnets and the integration of these magnets into miniaturized motor designs will open up new possibilities for creating smaller, more capable electromechanical devices in the future.

7. Conclusion

Magnets are integral to the operation, performance, and functionality of small electric motors. From the basic principles of electromagnetism to their diverse applications in consumer electronics, home appliances, automotive, industrial, and robotic fields, magnets have transformed the way small electric motors are designed and used. The careful design and selection of magnets, along with proper maintenance and troubleshooting, are essential for ensuring the reliable operation of these motors.

Looking ahead, advancements in magnetic materials, integration with smart technologies, and the drive for miniaturization and high - power density designs will continue to shape the future of magnets in small electric motors. As technology progresses, magnets will enable the development of more efficient, powerful, and intelligent small electric motors, further enhancing their role in various industries and applications and contributing to the overall progress of modern technology.
