1. Introduction to Magnets in Electronic Cigarettes

Electronic cigarettes, commonly known as e - cigarettes or vapes, have emerged as a popular alternative to traditional tobacco cigarettes in recent years. These devices, which heat a liquid solution (e - liquid) to produce an aerosol for inhalation, rely on a complex interplay of components to function effectively. Among these components, magnets play a crucial yet often overlooked role. Magnets in e - cigarettes are not just simple add - ons; they are essential elements that contribute to the device's functionality, user experience, and safety.

The use of magnets in e - cigarettes has evolved alongside the rapid development of vaping technology. As e - cigarette designs become more compact, user - friendly, and feature - rich, magnets have adapted to meet the changing demands of the industry. From ensuring secure connections between different parts of the device to facilitating automated functions, magnets have become an integral part of modern e - cigarette engineering. Understanding the scientific principles, diverse applications, and future trends of magnets in e - cigarettes provides valuable insights into the innovation and technology behind these increasingly popular devices.

2. The Scientific Principles of Magnets in Electronic Cigarettes

2.1 Types of Magnets Used

In e - cigarettes, two main types of magnets are commonly employed: permanent magnets and electromagnets, each with distinct characteristics and applications.

Permanent Magnets:

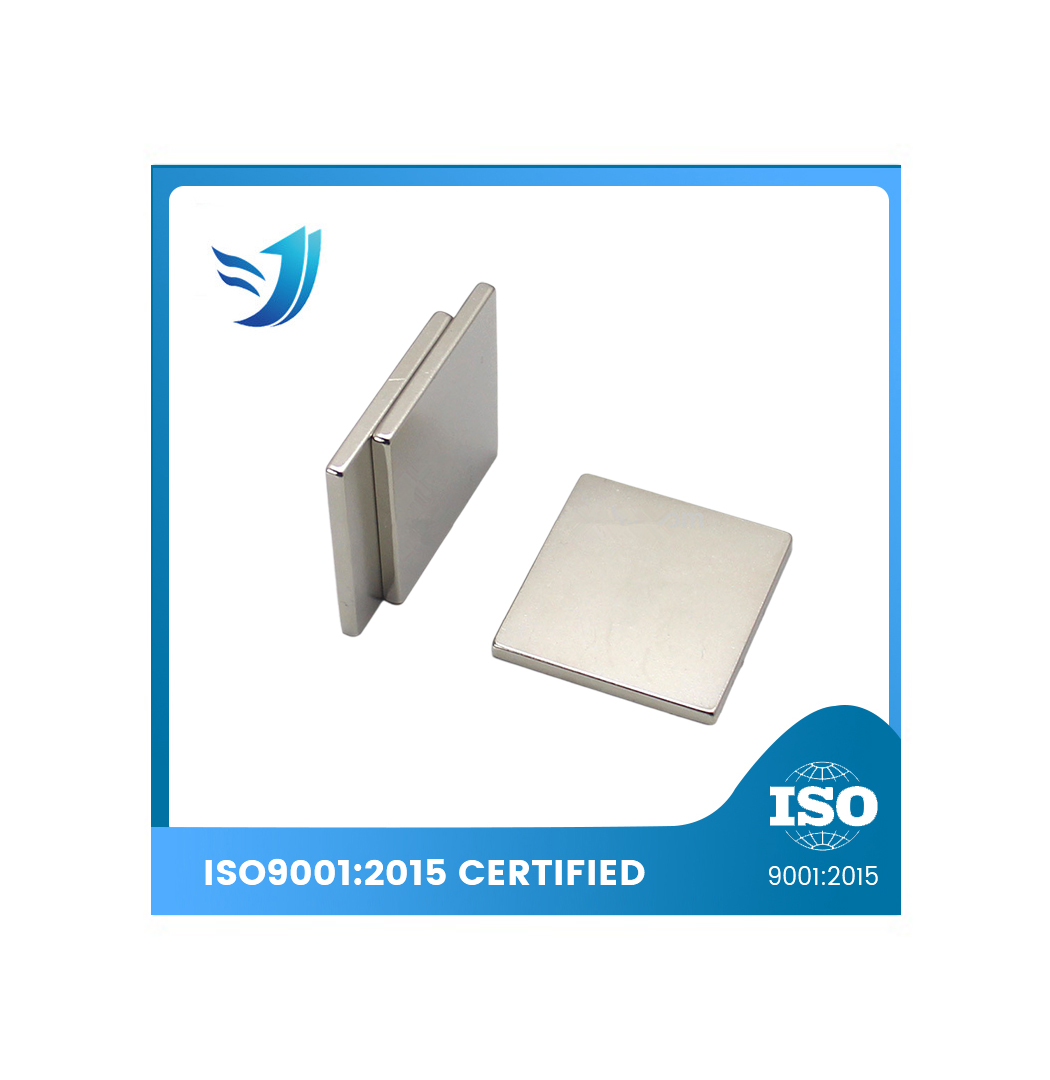

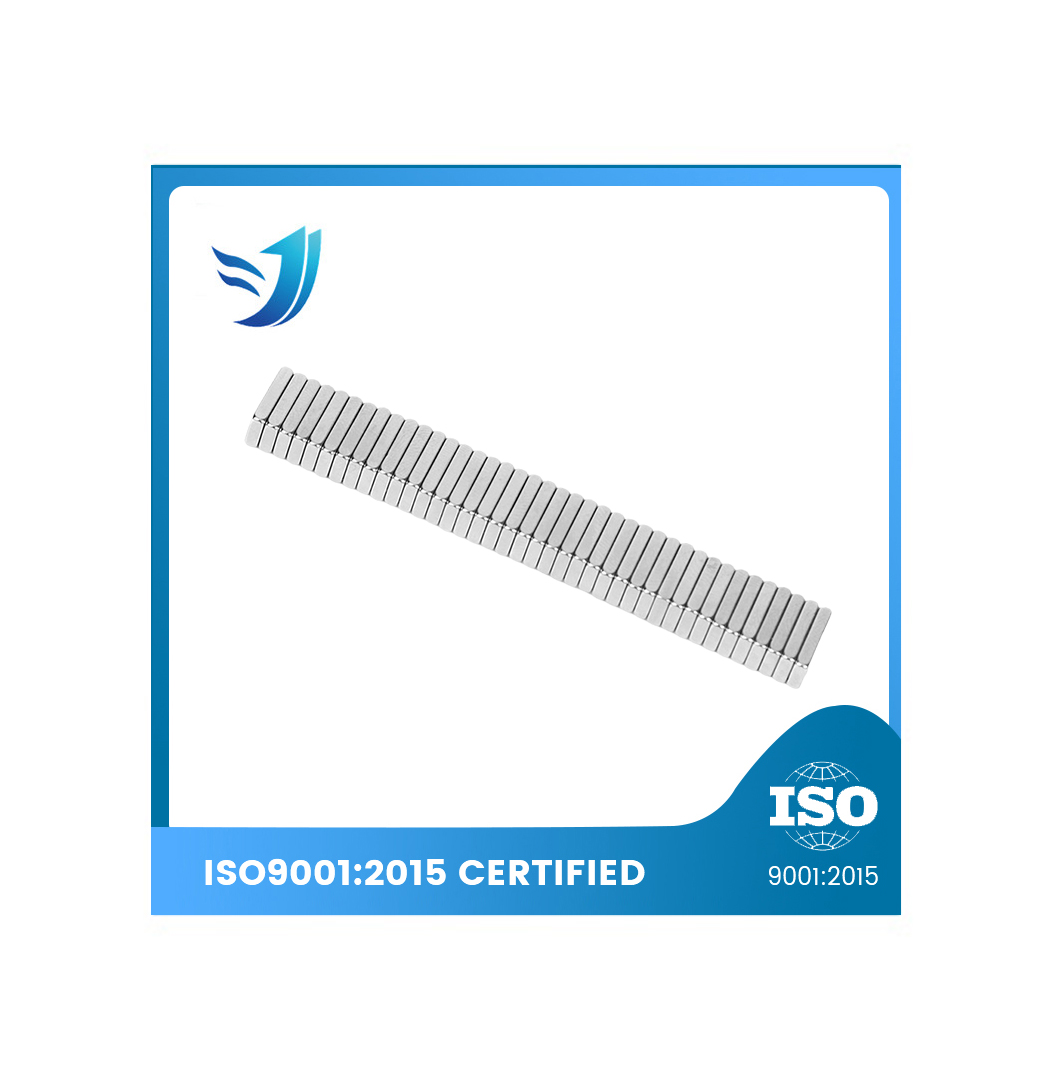

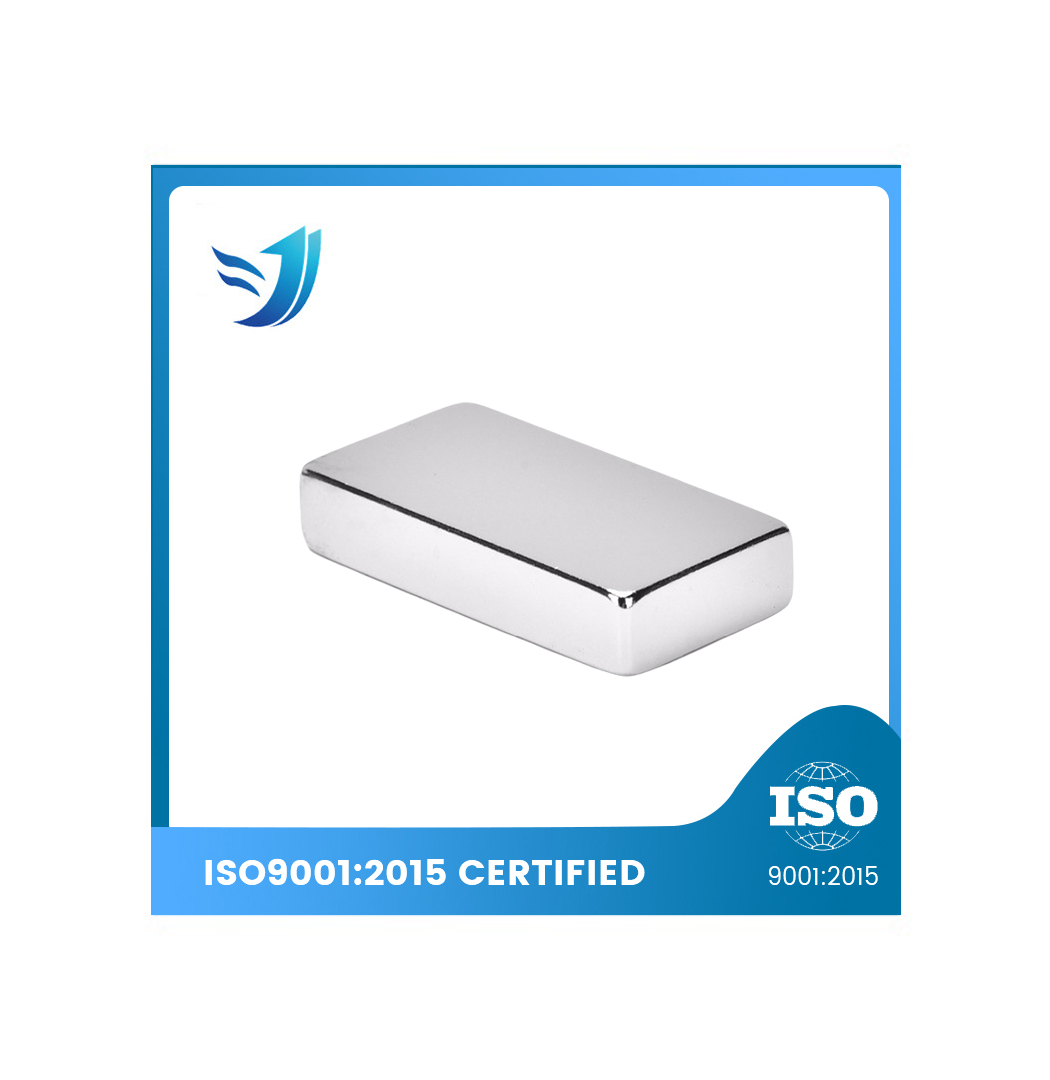

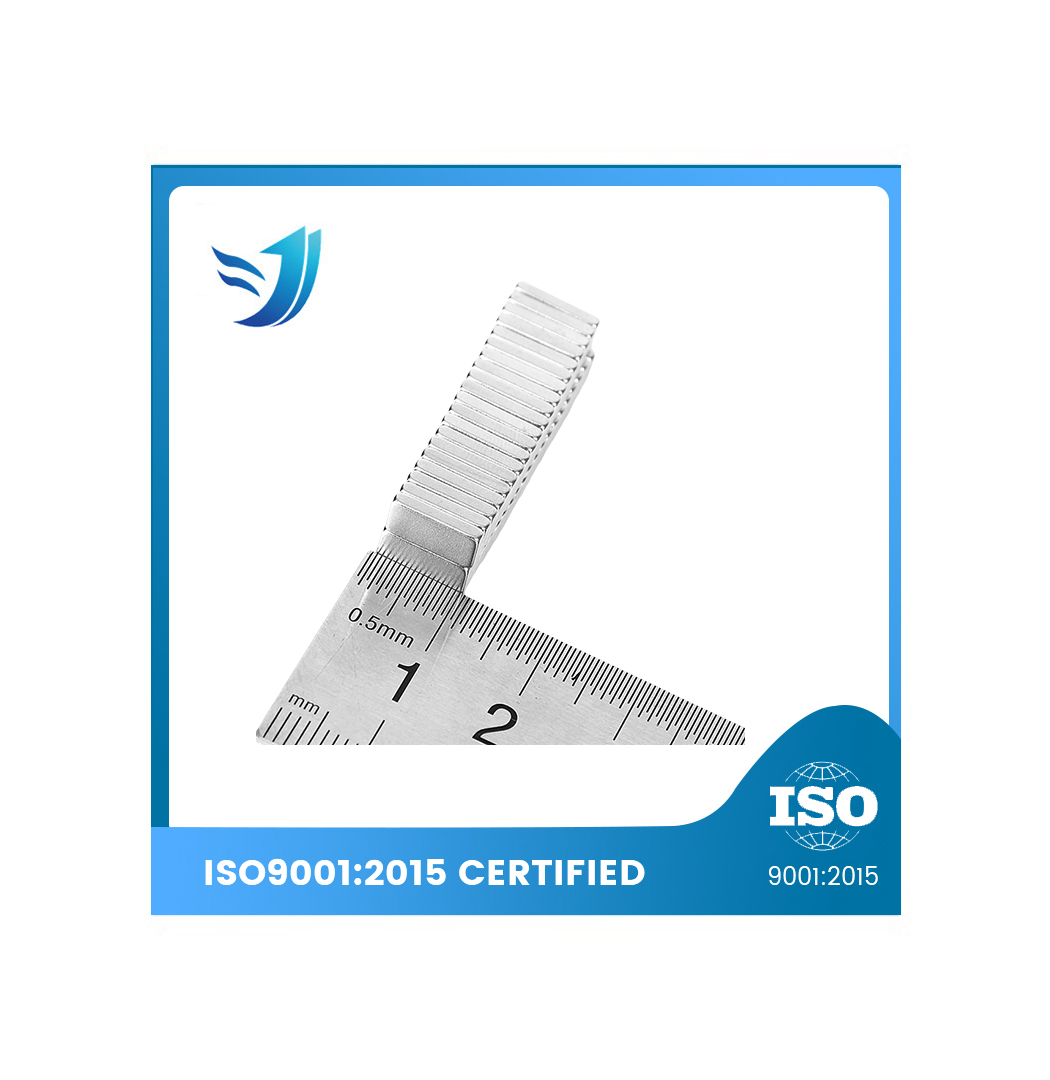

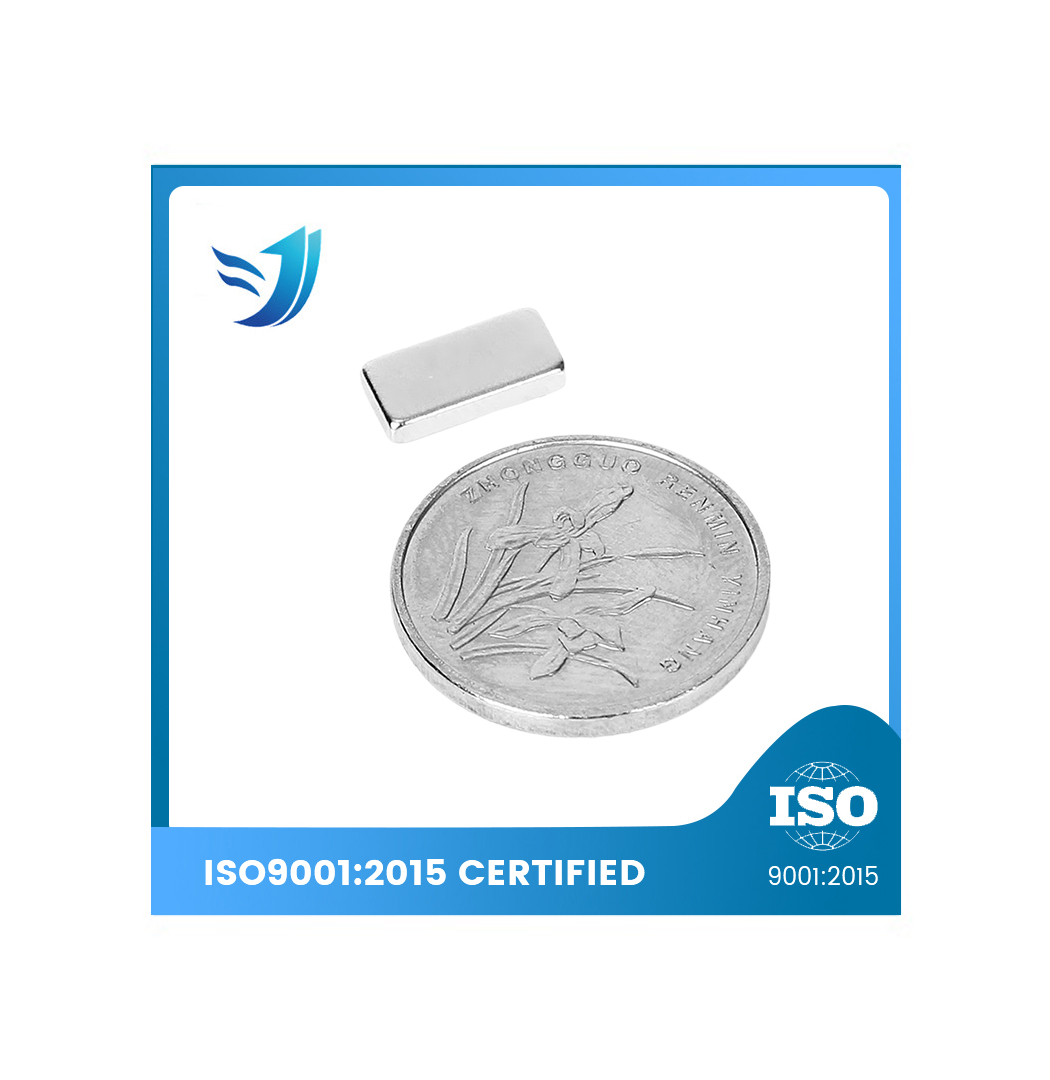

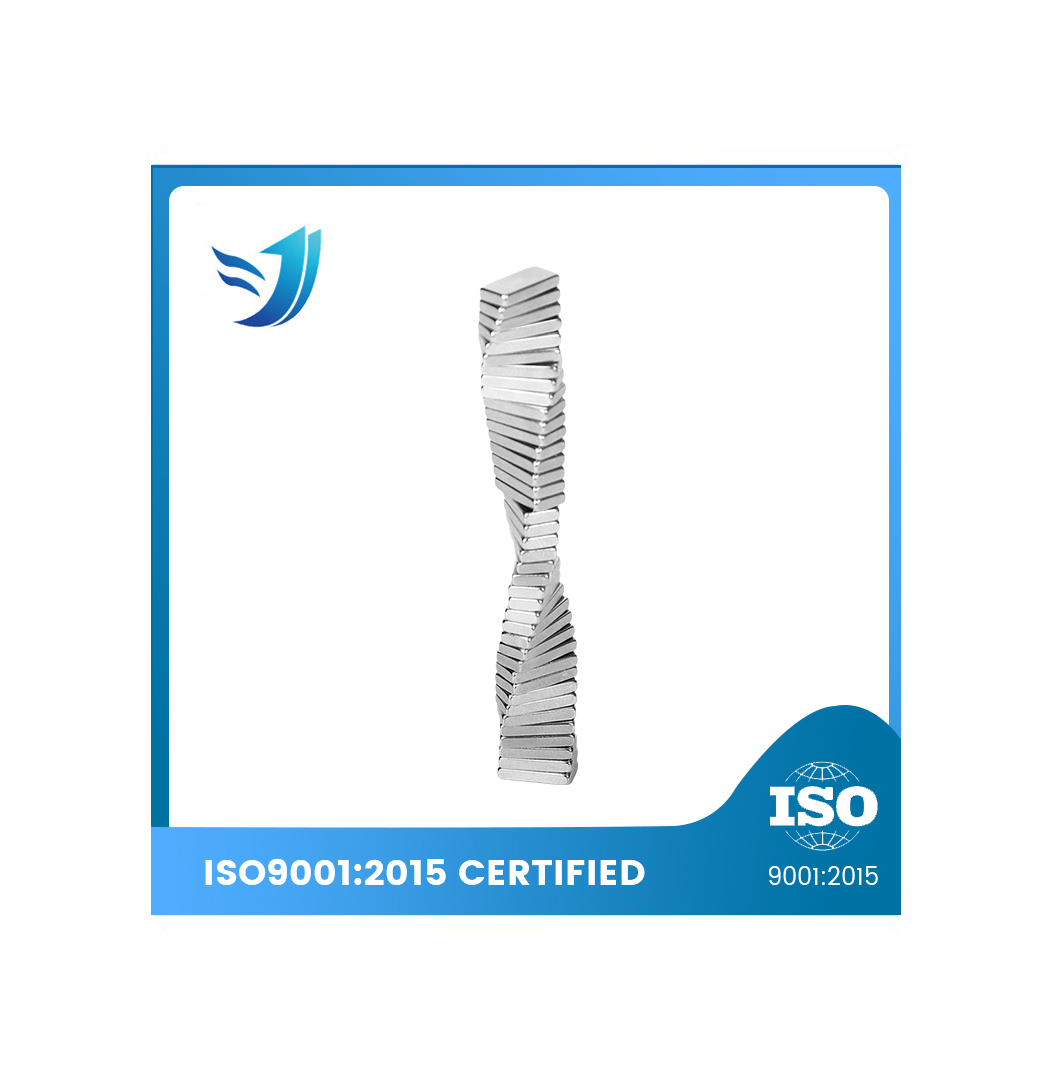

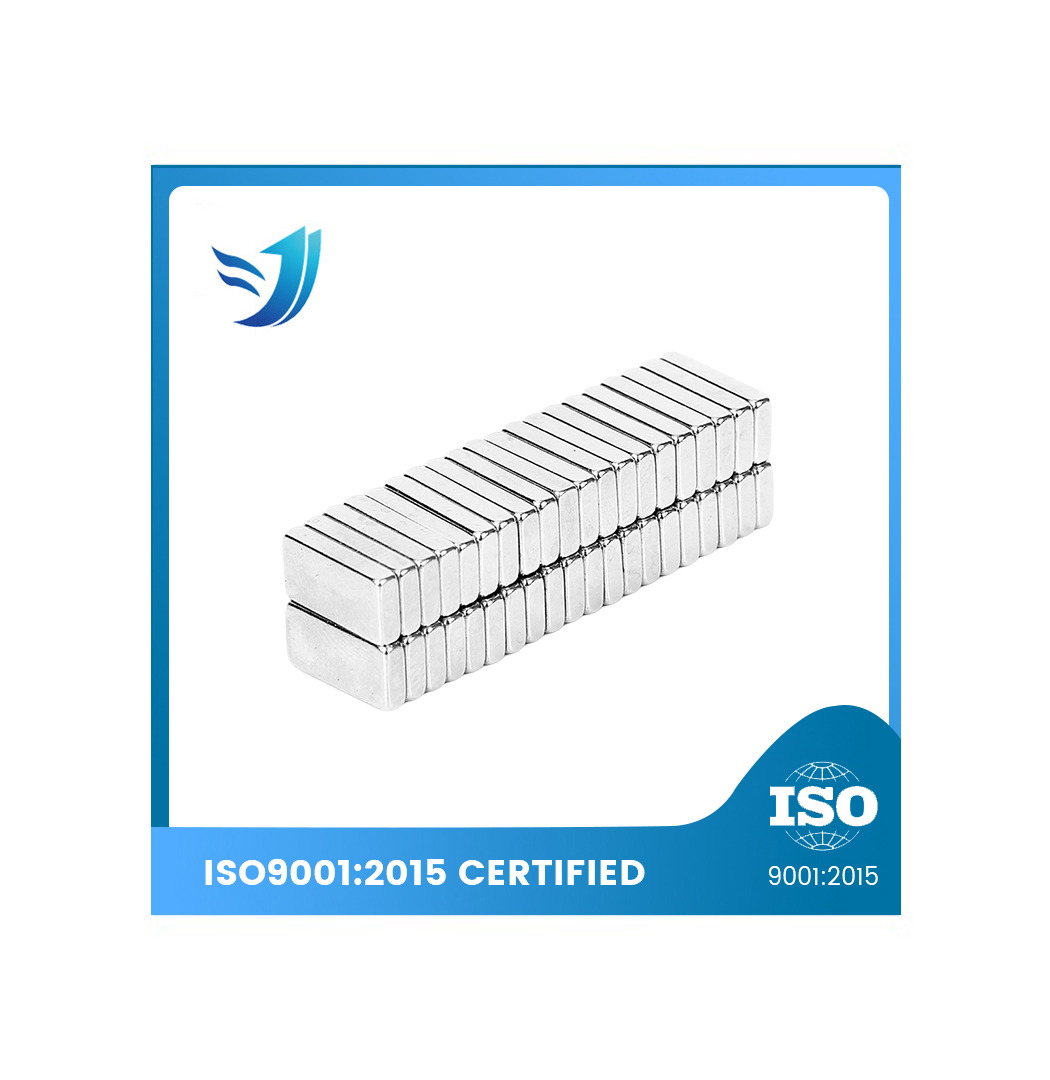

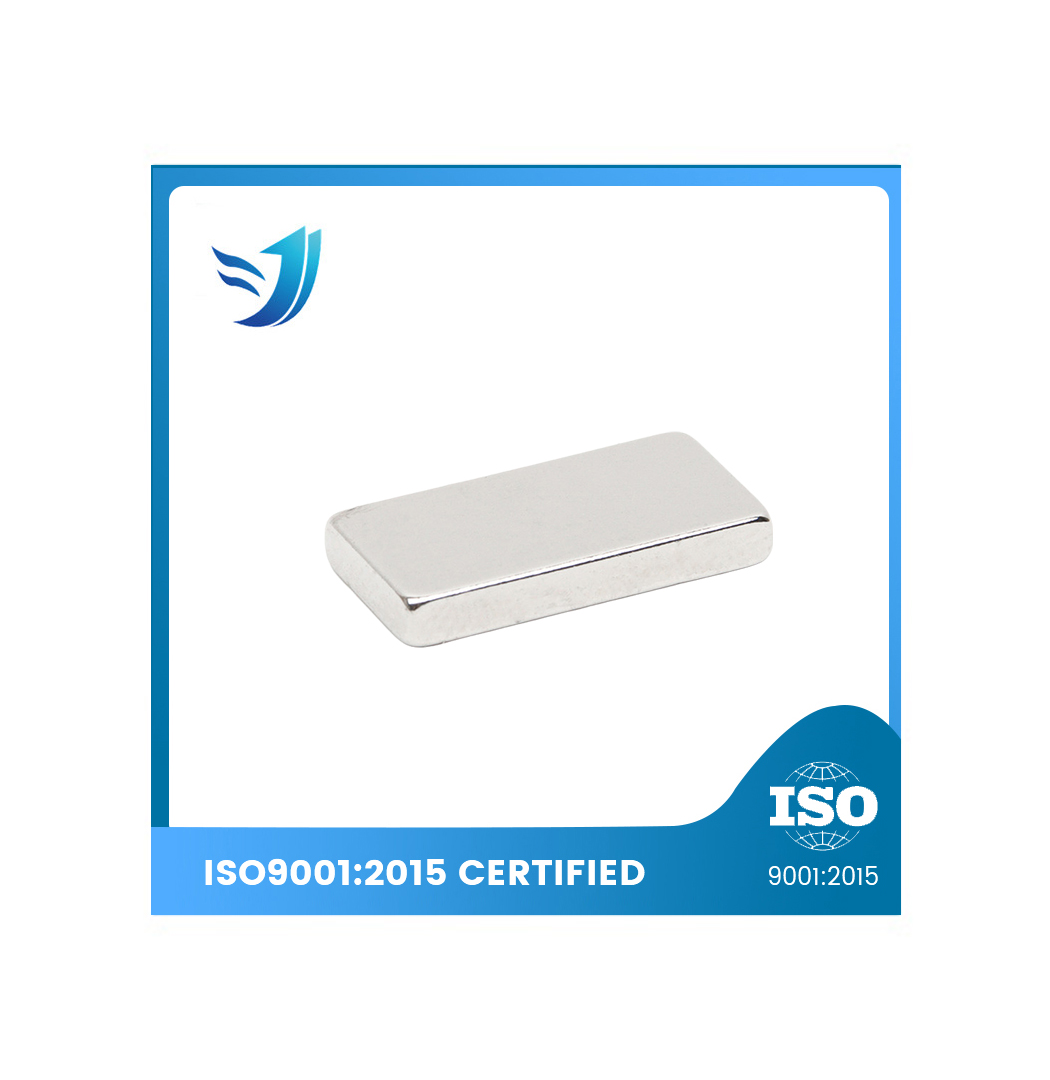

Permanent magnets, such as neodymium magnets, are widely used in e - cigarettes due to their high magnetic strength and durability. Neodymium magnets, composed of neodymium, iron, and boron, can generate a strong magnetic field in a relatively small size. This makes them ideal for creating secure connections in e - cigarette designs where space is at a premium. For example, they can be used to attach the cartridge (which holds the e - liquid) to the battery module, ensuring a stable and reliable connection without the need for complex mechanical locking mechanisms.

Another type of permanent magnet sometimes used is the ferrite magnet. Ferrite magnets are made from iron oxide and other metallic oxides. They are more cost - effective than neodymium magnets and have good resistance to corrosion. While they have a lower magnetic strength, ferrite magnets can still be suitable for applications in e - cigarettes where a moderate magnetic force is sufficient, such as in some basic snap - on connections or in simple magnetic switches.

Electromagnets:

Electromagnets, which are created by passing an electric current through a coil of wire, are also utilized in e - cigarettes, although less commonly. In certain advanced e - cigarette designs, electromagnets can be used to control the flow of liquid or the activation of specific functions. For instance, an electromagnet could be incorporated into a liquid - delivery system to precisely regulate the amount of e - liquid that reaches the heating element. By controlling the current through the electromagnet, the strength of the magnetic field can be adjusted, allowing for more accurate control over the vaping process.

2.2 Magnetic Force and Its Applications

The attractive and repulsive forces of magnets are harnessed in e - cigarettes for various purposes. The attractive force of magnets is primarily used to create secure and easy - to - use connections. When two magnetized components are brought close together, the magnetic attraction ensures that they are firmly attached. This is particularly useful in e - cigarettes, where users often need to attach and detach different parts of the device, such as the cartridge and the battery.

For example, in a pod - based e - cigarette, magnets are placed in the pod and the device's body. The magnetic force between these magnets holds the pod in place, preventing it from accidentally falling out during use. At the same time, the magnetic connection makes it easy for the user to remove and replace the pod when it runs out of e - liquid.

In some cases, the repulsive force of magnets can also be utilized. Although less common in e - cigarettes, it could potentially be used in self - cleaning mechanisms or in designs that prevent certain components from coming into unwanted contact with each other. For instance, a repulsive magnetic force could be used to keep debris or contaminants away from sensitive parts of the e - cigarette, such as the heating element.

2.3 Interaction with Other Components

Magnets in e - cigarettes interact with a variety of other components to ensure proper functionality. They work in tandem with the electrical components, such as the battery, circuit board, and heating element. When a cartridge is attached to the battery module using magnets, the magnetic connection often also aligns electrical contacts, allowing the battery to power the heating element in the cartridge.

The interaction between magnets and the e - liquid delivery system is also crucial. In some e - cigarette designs, magnets can be used to control the flow of e - liquid. For example, a magnetic valve could be used to open and close the passage for e - liquid, ensuring that it only flows to the heating element when the device is in use. This interaction helps to prevent leakage of e - liquid and ensures a consistent vaping experience.

In addition, magnets need to be carefully designed to avoid interfering with other components, especially the electrical and electronic parts. Magnetic fields can potentially disrupt the operation of sensitive electronic components, such as the microcontroller that controls the device's functions. Therefore, proper shielding and placement of magnets are essential to ensure that they do not cause any adverse effects on the overall performance of the e - cigarette.

3. Applications of Magnets in Electronic Cigarettes

3.1 Cartridge and Battery Connections

One of the most prominent applications of magnets in e - cigarettes is in the connection between the cartridge (or pod) and the battery. In traditional e - cigarettes with replaceable cartridges, magnets are used to create a secure and convenient connection. The magnets are strategically placed in the cartridge and the battery module. When the cartridge is brought close to the battery, the magnetic attraction pulls it into place, ensuring that the electrical contacts are properly aligned.

This magnetic connection offers several advantages. Firstly, it simplifies the user experience. Users can easily attach and detach the cartridge without the need for complex screws or clips. This is especially important for vapers who need to quickly replace an empty cartridge. Secondly, the magnetic connection provides a stable and reliable electrical connection, which is essential for consistent heating of the e - liquid and a smooth vaping experience. If the connection is loose, it can lead to inconsistent heating, poor vapor production, and even damage to the device.

In pod - based e - cigarettes, which have become increasingly popular, the role of magnets is even more critical. These devices typically have a small, disposable pod that contains the e - liquid and the heating element. The pod is attached to the main device body using magnets. The magnetic connection in pod - based systems ensures that the pod is held firmly in place, preventing any leakage of e - liquid and ensuring that the electrical contacts remain connected during use.

3.2 Liquid Flow Control

Magnets can also be used to control the flow of e - liquid in e - cigarettes. In some advanced designs, magnetic valves are employed. These valves consist of a magnetic component that can be actuated by an external magnetic field. When the e - cigarette is turned on, an electromagnetic field (generated either by an internal electromagnet or by the magnetic field from the battery - cartridge connection) can open the magnetic valve, allowing e - liquid to flow from the cartridge to the heating element.

Conversely, when the device is turned off or in standby mode, the magnetic valve closes, preventing any e - liquid from flowing. This mechanism helps to prevent leakage of e - liquid, especially when the e - cigarette is not in use or is being transported. It also ensures that the e - liquid is only used when the user is actively vaping, improving the efficiency of the device and reducing waste.

In addition, some e - cigarette designs use magnetic forces to control the capillary action of e - liquid. By manipulating the magnetic field around the wicking material (which carries the e - liquid to the heating element), the flow rate of e - liquid can be adjusted. This allows for more precise control over the vapor production and the overall vaping experience.

3.3 Safety and Anti - Leakage Features

Magnets contribute significantly to the safety and anti - leakage features of e - cigarettes. As mentioned earlier, the magnetic connection between the cartridge and the battery helps to prevent leakage of e - liquid. A secure magnetic connection ensures that there are no gaps or loose connections through which e - liquid could seep out.

In some e - cigarette designs, additional magnetic components are used to create a seal around the cartridge. For example, a ring - shaped magnet can be used to create a tight seal between the cartridge and the battery module, further preventing any leakage. This is especially important for e - cigarettes that are designed to be used on the go, as they may be subjected to various movements and orientations that could otherwise cause e - liquid to spill.

Magnets can also be incorporated into safety features related to the device's operation. For instance, some e - cigarettes use magnetic sensors to detect when the cartridge is properly attached. If the cartridge is not securely connected (as determined by the strength of the magnetic field), the device may not function, preventing potential safety hazards such as short - circuits or improper heating of the e - liquid.

3.4 Automated Functions and User Experience Enhancement

Magnets can be used to enable automated functions in e - cigarettes, enhancing the user experience. For example, some e - cigarettes use magnetic sensors to detect when the user is taking a puff. When the user inhales, the change in air pressure or the movement of a component within the device can trigger a magnetic sensor. This sensor can then send a signal to the device's microcontroller, which activates the heating element, providing a more seamless and intuitive vaping experience.

In addition, magnets can be used in designs that allow for easy adjustment of settings. For instance, a magnetic dial or slider could be used to adjust the power output or the temperature of the heating element. The magnetic force would hold the dial or slider in place at the selected setting, providing a tactile and precise way for the user to customize their vaping experience.

4. Design and Selection of Magnets for Electronic Cigarettes

4.1 Performance Requirements

When designing or selecting magnets for e - cigarettes, several performance requirements must be considered. Magnetic Strength: The magnetic strength of the magnet is crucial for ensuring secure connections. For the cartridge - battery connection, the magnet needs to be strong enough to hold the cartridge firmly in place, even during vigorous movement or when the device is tilted. However, it should not be so strong that it becomes difficult for the user to detach the cartridge. A balance must be struck to ensure both security and ease of use.

In applications related to liquid flow control, the magnetic strength of the components (such as magnetic valves) needs to be precisely calibrated. The magnetic force should be sufficient to open and close the valve reliably but not so strong that it causes unnecessary stress on the components or consumes excessive power.

Size and Shape: E - cigarettes are designed to be compact and portable, so the magnets used in them need to be small and have a suitable shape. Miniature and thin - film magnets are often preferred to fit within the limited space available in e - cigarette designs. The shape of the magnet can also affect its performance and how it integrates with other components. For example, a cylindrical magnet may be suitable for a magnetic valve, while a flat, circular magnet may be better for creating a connection between the cartridge and the battery.

Temperature Resistance: E - cigarettes generate heat during operation, especially around the heating element. The magnets used in these devices need to be able to withstand the elevated temperatures without losing their magnetic properties. Some magnetic materials may experience demagnetization at high temperatures, which could lead to a loss of functionality. Therefore, materials with good temperature resistance, such as neodymium magnets with proper coatings, are often selected.

4.2 Compatibility with E - Cigarette Components

Magnets in e - cigarettes must be compatible with other components to ensure proper operation and safety. Electrical Compatibility: As e - cigarettes are electrical devices, the magnets need to be designed in a way that they do not interfere with the electrical components. Magnetic fields can induce currents in nearby conductors, potentially causing interference with the device's circuitry. To prevent this, proper shielding and isolation techniques are used. For example, the magnets can be encased in a non - magnetic material to contain the magnetic field and prevent it from affecting the electrical components.

Chemical Compatibility: E - liquid contains various chemicals, including propylene glycol, vegetable glycerin, and flavorings. The magnets used in e - cigarettes need to be chemically resistant to these substances. If the magnet reacts with the e - liquid, it can lead to corrosion, which not only affects the performance of the magnet but can also contaminate the e - liquid, posing a health risk to the user. Therefore, materials that are inert to e - liquid components are selected for the magnets, and protective coatings may be applied to further enhance chemical resistance.

4.3 Cost - Benefit Analysis

Cost is an important factor in the design and selection of magnets for e - cigarettes. Manufacturers need to balance the performance requirements of the magnets with their cost. Neodymium magnets, while offering superior performance, are more expensive than ferrite magnets. For budget - friendly e - cigarette models, ferrite magnets may be used in some applications where the performance difference is not critical. However, in high - end e - cigarettes, where a more secure connection and advanced features are required, the higher cost of neodymium magnets may be justified.

In addition to the initial cost of the magnets, the long - term cost implications also need to be considered. A more expensive magnet with better durability and performance may reduce the need for component replacements and repairs in the future, resulting in lower overall costs for the manufacturer and potentially a better - quality product for the consumer.

5. Maintenance and Troubleshooting of Magnets in Electronic Cigarettes

5.1 Regular Maintenance

Regular maintenance of the magnets in e - cigarettes can help ensure their optimal performance and the longevity of the device. Cleaning: Over time, e - liquid residue, dust, and other contaminants can accumulate around the magnets, especially in the connection areas between the cartridge and the battery. Using a soft, dry cloth or a cotton swab, these areas can be gently cleaned to remove any debris. This not only helps to maintain the magnetic connection but also prevents the e - liquid residue from corroding the magnets or other components.

Inspection: Periodically inspecting the e - cigarette for any signs of damage to the magnetic components is also important. Check if the magnets are still securely attached to their respective parts of the device. If a magnet appears loose or has been dislodged, it should be reattached or replaced immediately. In addition, look for any signs of corrosion or demagnetization, such as a weakening of the magnetic connection. If such issues are detected, appropriate measures should be taken, such as cleaning the magnet more thoroughly or replacing it if necessary.

5.2 Common Issues and Solutions

One common issue with magnets in e - cigarettes is a weakening of the magnetic connection. This can occur due to several reasons, such as exposure to high temperatures, physical damage, or demagnetization over time. If the cartridge no longer attaches securely to the battery, the first step is to clean the connection areas to remove any e - liquid residue or debris that may be interfering with the magnetic force.

If cleaning does not solve the problem, it may be necessary to check if the magnet has been demagnetized. In some cases, a demagnetized magnet can be re - magnetized using a suitable magnetizing device. However, if the magnet is severely damaged or has lost too much of its magnetic strength, it will need to be replaced.

Another issue is magnetic interference with the device's electrical components. If the e - cigarette is experiencing electrical problems, such as inconsistent heating or failure to turn on, and magnetic interference is suspected, the placement of the magnets should be reviewed. It may be necessary to add additional magnetic shielding or reposition the magnets to reduce their impact on the electrical components.

In the case of magnetic liquid - flow control components, such as magnetic valves, a common problem is clogging or sticking. This can be caused by e - liquid residue building up inside the valve. To solve this issue, the valve may need to be disassembled (if possible) and cleaned thoroughly. If the valve is damaged or no longer functions properly, it should be replaced to ensure proper control of the e - liquid flow.

6. Future Developments of Magnets in Electronic Cigarettes

6.1 Advancements in Magnetic Materials

The future of magnets in e - cigarettes is closely linked to advancements in magnetic materials. Researchers are continuously exploring new materials and manufacturing techniques to create magnets with improved performance, reduced cost, and enhanced safety features.

One area of focus is the development of more cost - effective magnetic materials without sacrificing performance. As the e - cigarette market becomes more competitive, manufacturers are looking for ways to reduce production costs while maintaining high - quality products. Developing alternative materials to neodymium magnets, which are currently expensive due to the use of rare - earth elements, could make e - cigarette production more affordable.

In addition, there is a growing interest in creating magnetic materials that are more resistant to high temperatures and chemicals. E - cigarettes operate in an environment where they are exposed to heat from the heating element and various chemicals in the e - liquid. New magnetic materials with better thermal and chemical stability could improve the reliability and lifespan of e - cigarettes, reducing the risk of component failure and potential safety hazards.

6.2 Integration with Smart Technologies

As the e - cigarette industry moves towards more intelligent and connected devices, magnets are likely to be integrated with smart technologies. Sensors and Monitoring: Magnets can be used in combination with sensors to monitor various aspects of the e - cigarette's operation. For example, magnetic sensors could be used to detect the level of e - liquid in the cartridge. By measuring the magnetic field changes as the e - liquid level decreases, the device could alert the user when it is time to replace the cartridge.

In addition, magnets could be part of systems that monitor the temperature and performance of the heating element. This information could be used to adjust the power output of the device in real - time, ensuring a consistent vaping experience and preventing overheating, which could lead to safety issues.

Connectivity and App Integration: Future e - cigarettes may be able to connect to smartphones or other devices via Bluetooth or Wi - Fi. Magnets could play a role in the physical connection and alignment of external accessories, such as charging docks or additional sensors. The data collected by the e - cigarette (such as vaping habits, battery life, and e - liquid consumption) could be transmitted to a mobile app, allowing users to track and analyze their vaping behavior and customize their device settings.

6.3 Enhanced Safety and User - Centric Designs

Safety is a top priority in the e - cigarette industry, and magnets will continue to play a role in enhancing safety features. Improved Anti - Leakage Systems: Future e - cigarette designs may use more advanced magnetic systems to prevent e - liquid leakage. For example, self - adjusting magnetic seals that can adapt to different pressures and orientations
