1. Introduction

Direct Current (DC) motors have been an integral part of various technological applications for over 130 years. These motors are designed to convert electrical energy from a direct current source into mechanical energy, enabling a wide range of machinery and devices to function. At the heart of a DC motor's operation are magnets, which play a pivotal role in generating the necessary forces for rotation. Understanding the types of magnets used, how they function, their significance, challenges, and future prospects is crucial for optimizing DC motor performance and expanding their applications.

2. Basics of DC Motors and Magnetism

2.1 The Structure and Working Principle of DC Motors

A simple DC motor typically consists of two main components: the rotor and the stator. The rotor, often an electromagnet, is a spinning coil of wire that is mounted on an axle. The stator, on the other hand, can be either a permanent magnet or another electromagnet. When a direct current is supplied to the motor, it flows through the coils of the rotor, creating an electromagnetic field.

According to the laws of electromagnetism, like poles of magnets repel each other, and opposite poles attract. In a DC motor, the interaction between the magnetic field of the rotor (created by the electric current) and the magnetic field of the stator (either from a permanent magnet or an electromagnet) results in a torque that causes the rotor to rotate. This rotation is then transferred to the output shaft, which can be used to drive various mechanical components such as fans, pumps, or conveyor belts.

2.2 Fundamental Concepts of Magnetism Relevant to DC Motors

Magnets are objects that produce magnetic fields. There are two main types of magnets relevant to DC motors: permanent magnets and electromagnets.

Permanent magnets, as the name implies, retain their magnetic properties without the need for an external power source. They are made from materials such as ceramic (ferrite), neodymium, samarium - cobalt, and alnico. These materials have atoms with aligned magnetic moments, which collectively create a strong and stable magnetic field.

Electromagnets, on the other hand, are created by passing an electric current through a coil of wire. When the current flows, the coil generates a magnetic field. The strength of this magnetic field can be controlled by adjusting the amount of current flowing through the wire. When the current is turned off, the magnetic field disappears. In DC motors, electromagnets can be used in the rotor or the stator, and their ability to have variable magnetic fields provides greater control over the motor's operation.

3. Types of Magnets Used in DC Motors

3.1 Permanent Magnets

3.1.1 Ferrite (Ceramic) Magnets

Ferrite magnets, also known as ceramic magnets, are one of the most commonly used types of permanent magnets in DC motors, especially in applications where cost - effectiveness is a key factor. They are made from a combination of iron oxide (Fe₂O₃) and other metal oxides, typically strontium (Sr) or barium (Ba).

The manufacturing process of ferrite magnets begins with mixing the raw materials in specific proportions. This mixture is then calcined at high temperatures, usually around 1000 - 1300 °C. Calcination helps in forming a homogeneous material with the desired magnetic properties. After calcination, the material is ground into a fine powder. The powder is then shaped into the required form, often using compression molding techniques. Finally, the shaped magnet is sintered at even higher temperatures, typically between 1200 - 1400 °C. Sintering aligns the magnetic domains within the material, enhancing its magnetic strength.

Ferrite magnets have several characteristics that make them suitable for DC motor applications. They have a relatively high resistance to demagnetization, which means they can maintain their magnetic properties even in the presence of external magnetic fields or mechanical stress. They also offer good corrosion resistance, which is important as DC motors may be used in various environmental conditions. However, compared to some other types of permanent magnets, ferrite magnets have a lower magnetic field strength. This makes them more suitable for applications where high torque or high - speed operation is not required, such as in small household appliances like fans, small pumps, and some toys.

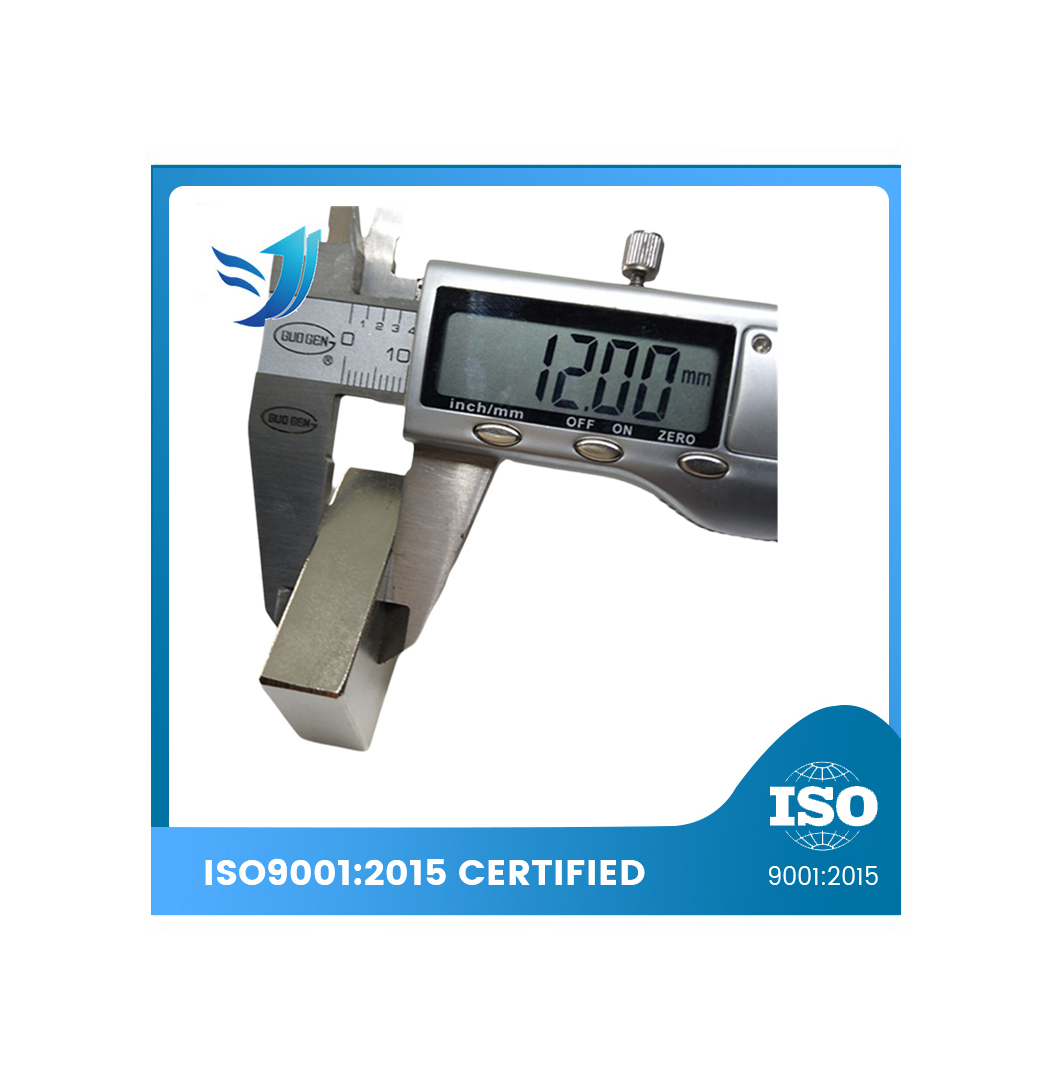

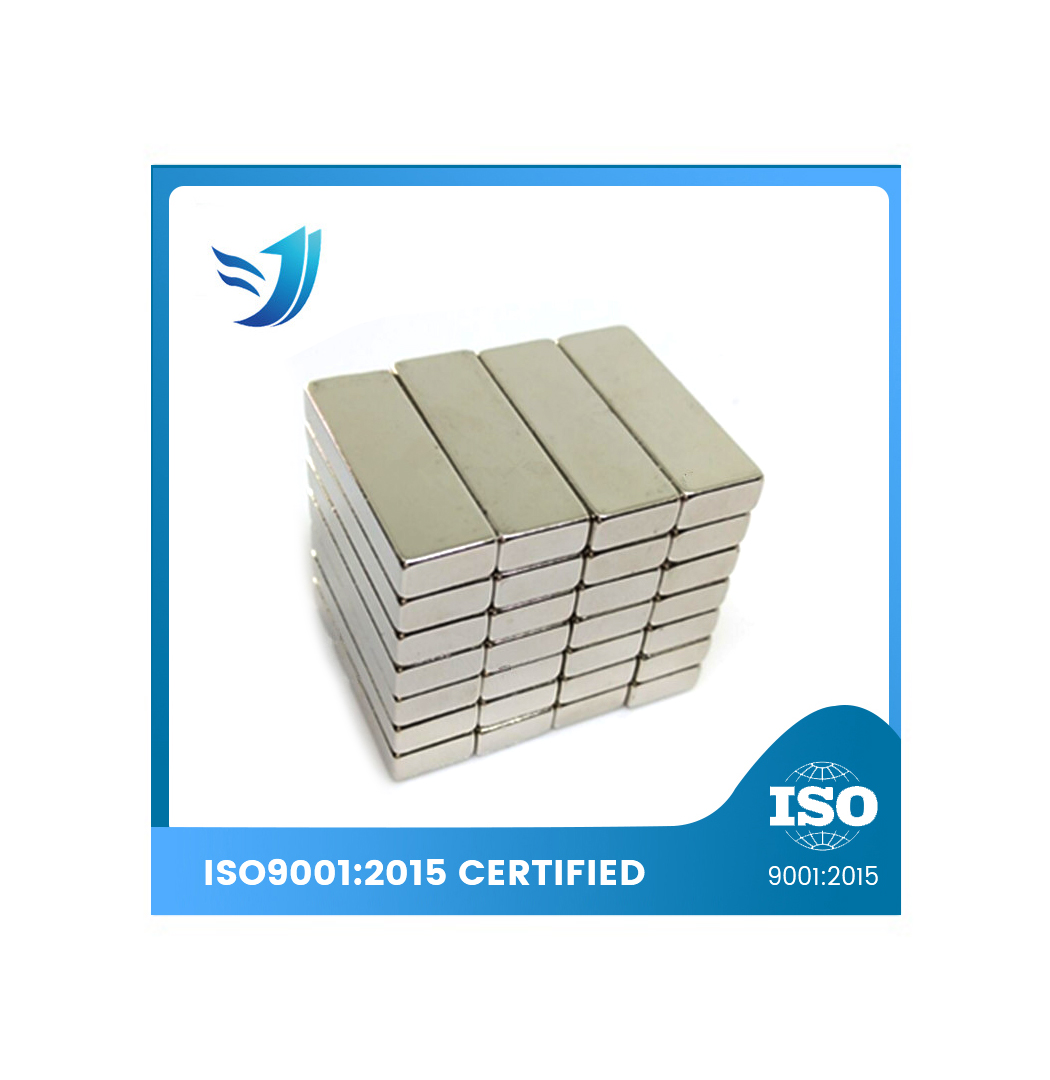

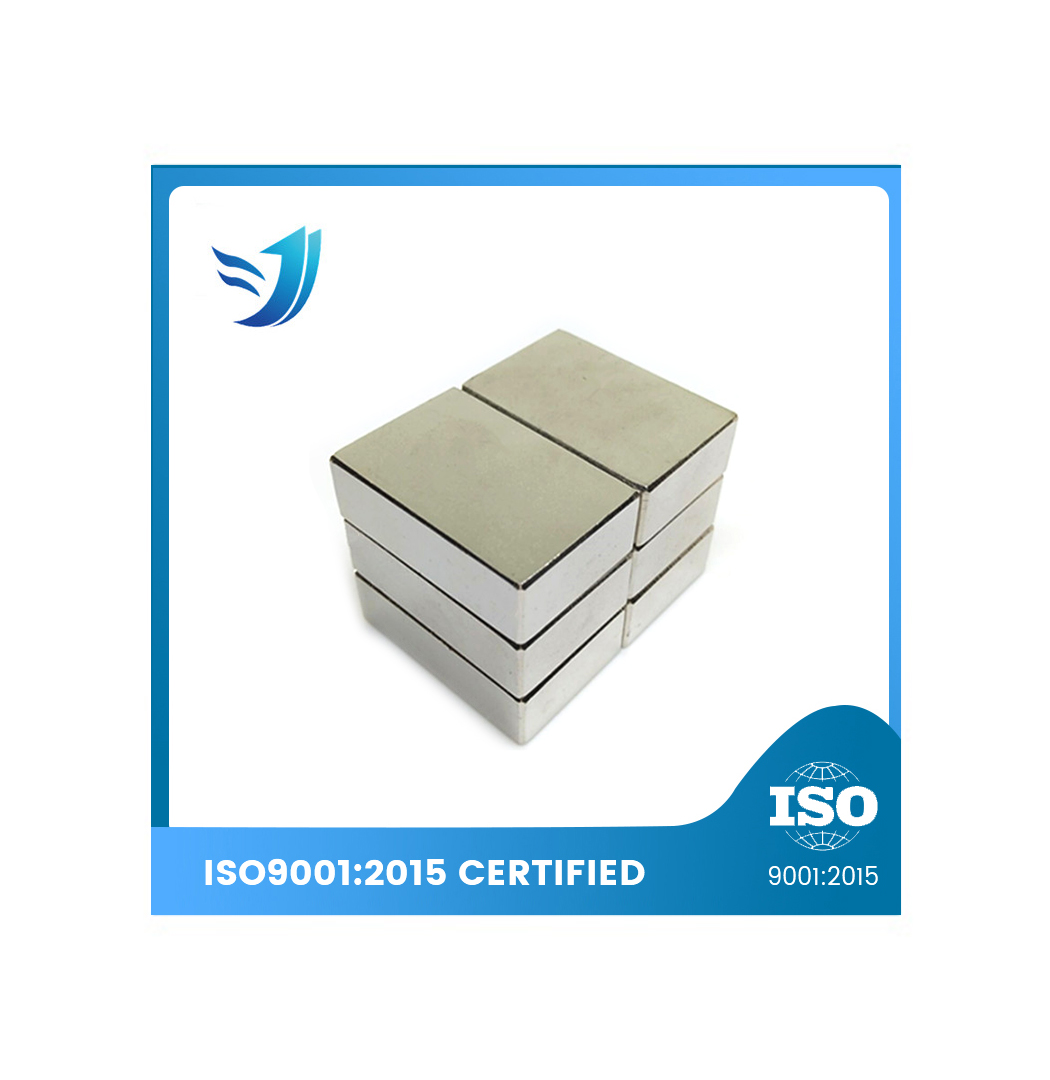

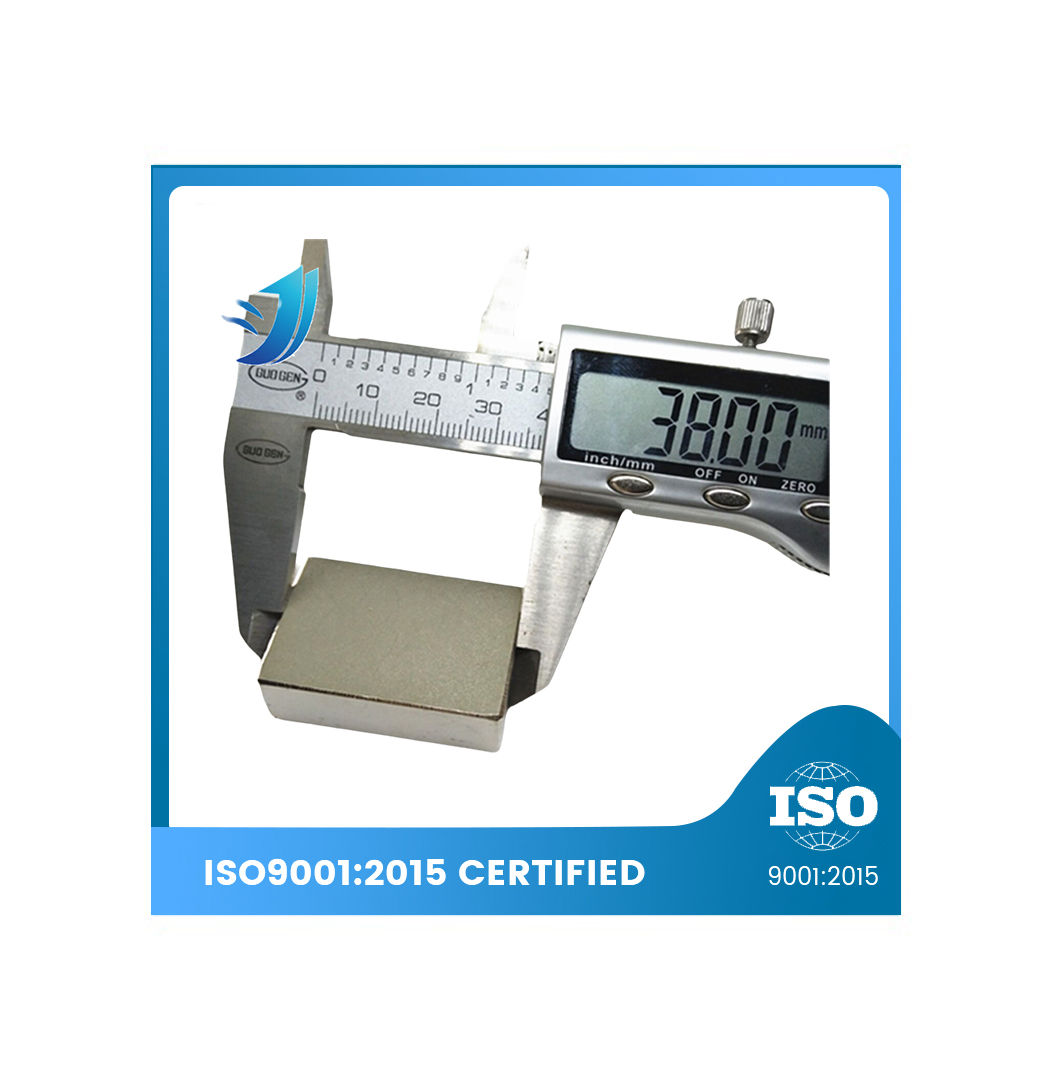

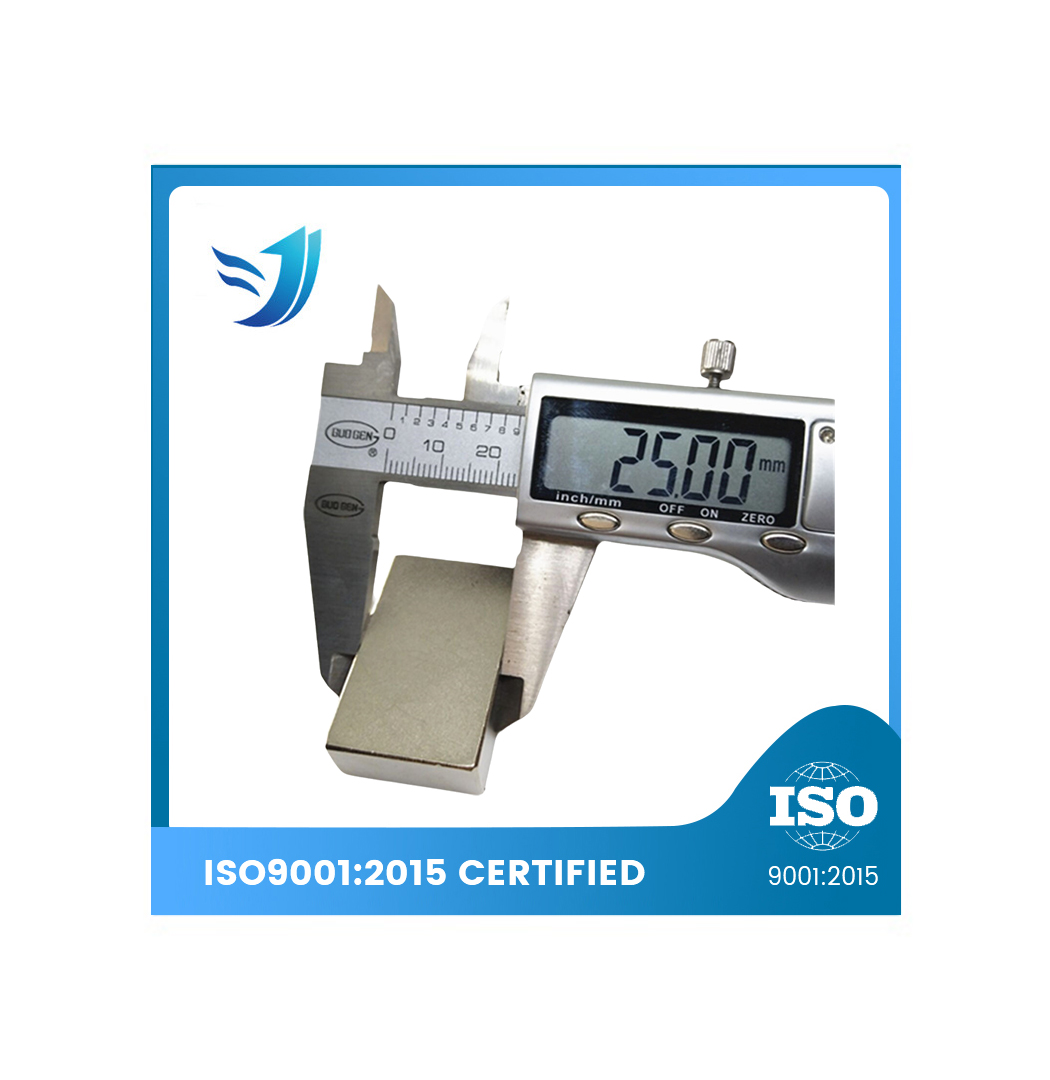

3.1.2 Neodymium Magnets

Neodymium magnets are made from an alloy of neodymium (Nd), iron (Fe), and boron (B), with the chemical formula Nd₂Fe₁₄B. These magnets are renowned for their extremely high magnetic strength, making them a popular choice for high - performance DC motors.

The production of neodymium magnets is a complex process. First, the raw materials are melted together in a furnace at very high temperatures, typically around 1600 - 1700 °C. Once solidified, the alloy is ground into a fine powder. This powder is then compacted under high pressure, often in the range of 100 - 200 MPa, and sintered in a vacuum or inert gas environment at temperatures around 1000 - 1100 °C. Sintering is a crucial step as it aligns the magnetic domains, giving the magnet its exceptional magnetic properties. After sintering, the magnet may undergo additional machining processes to achieve the desired shape and size. Since neodymium is highly reactive and prone to oxidation, the magnets are usually coated with a protective layer. Common coatings include nickel (Ni), zinc (Zn), or a combination of nickel - copper - nickel (Ni - Cu - Ni).

Neodymium magnets offer several advantages in DC motor applications. Their high magnetic field strength allows for the design of smaller and more compact motors without sacrificing performance. They can generate a higher torque, which is beneficial for applications that require the motor to start quickly or handle heavy loads. For example, in electric vehicles (EVs), neodymium - magnet - based DC motors are used in the drive systems as they can provide the high torque needed for acceleration and the ability to operate efficiently at different speeds. They are also used in power tools, where their high magnetic strength enables the motors to deliver powerful and consistent performance. However, neodymium magnets have some drawbacks. They are more expensive compared to ferrite magnets, and they are sensitive to high temperatures. Prolonged exposure to temperatures above 80 - 150 °C (depending on the grade of the magnet) can cause them to demagnetize, which may lead to a decrease in motor performance.

3.1.3 Samarium - Cobalt Magnets

Samarium - cobalt (Sm - Co) magnets are another type of rare - earth permanent magnet used in DC motors, especially in applications where high - temperature stability and corrosion resistance are critical. They are made from an alloy of samarium and cobalt, with different compositions depending on the specific grade of the magnet.

The manufacturing process of Sm - Co magnets is similar to that of neodymium magnets. The raw materials are melted, ground into a powder, compacted, and sintered. However, Sm - Co magnets require even higher sintering temperatures, typically around 1200 - 1300 °C. This is because the Sm - Co alloy has a higher melting point compared to the Nd - Fe - B alloy.

Samarium - cobalt magnets have excellent temperature stability. They can maintain their magnetic properties at much higher temperatures than neodymium magnets, with some grades able to operate at temperatures up to 300 - 400 °C without significant demagnetization. They also offer good corrosion resistance, making them suitable for use in harsh environments. In DC motors, Sm - Co magnets are often used in aerospace applications, such as in the motors of aircraft actuators and control systems. These motors need to operate reliably in extreme temperature conditions, and the high - temperature stability of Sm - Co magnets ensures consistent performance. They are also used in some high - end industrial equipment and medical devices where reliability and performance in challenging environments are crucial. However, Sm - Co magnets are relatively expensive, and their magnetic strength is slightly lower than that of neodymium magnets, which limits their use in applications where the highest magnetic field strength is required.

3.1.4 Alnico Magnets

Alnico magnets are made from an alloy of aluminum (Al), nickel (Ni), and cobalt (Co), along with other elements such as iron (Fe) and sometimes copper (Cu) or titanium (Ti). These magnets have been used for a long time in various applications, including DC motors.

The manufacturing process of alnico magnets typically involves melting the raw materials together in a furnace. After melting, the alloy is cast into the desired shape. Some alnico magnets may also undergo a heat - treatment process to optimize their magnetic properties. This heat - treatment can involve heating the magnet to a specific temperature and then cooling it at a controlled rate.

Alnico magnets have a unique set of properties. They can produce a very strong and stable magnetic field, and they are known for their high coercivity, which means they are resistant to demagnetization by external magnetic fields. However, they are relatively heavy compared to other types of permanent magnets. In DC motors, alnico magnets are used in applications where a high magnetic field strength is required and where weight is not a major concern. For example, they are used in some high - precision instruments and in certain types of electric guitars, where their magnetic properties can enhance the performance of pickups. They are also used in some industrial motors that need to operate in environments with strong external magnetic fields, as their high coercivity helps them maintain their magnetic properties.

3.2 Electromagnets

3.2.1 Construction and Working of Electromagnets in DC Motors

In DC motors, electromagnets are created by winding a coil of wire around a ferromagnetic core, usually made of iron or a similar magnetic material. When an electric current is passed through the wire, a magnetic field is generated around the coil. The strength of this magnetic field is directly proportional to the amount of current flowing through the wire and the number of turns in the coil.

The construction of electromagnets in DC motors can vary depending on the specific design requirements. The wire used for winding is often insulated to prevent short - circuits. The ferromagnetic core is chosen for its ability to enhance the magnetic field. Iron, for example, has high magnetic permeability, which means it can concentrate and strengthen the magnetic field generated by the coil.

In operation, the control of the electric current flowing through the electromagnet is crucial. By adjusting the current, the magnetic field strength of the electromagnet can be varied. This allows for precise control over the torque and speed of the DC motor. For instance, in a DC motor used in a variable - speed conveyor system, the current to the electromagnet can be adjusted based on the desired speed of the conveyor. Increasing the current will increase the magnetic field strength, resulting in a higher torque and a faster rotation of the motor.

3.2.2 Advantages and Disadvantages of Using Electromagnets in DC Motors

One of the main advantages of using electromagnets in DC motors is the ability to control the magnetic field precisely. This is in contrast to permanent magnets, where the magnetic field strength is fixed. With electromagnets, the motor can be easily adjusted to operate under different load conditions or to achieve specific speed - torque characteristics. This makes them suitable for applications that require variable speed or torque control, such as in industrial machinery, where the motor may need to operate at different speeds depending on the production process.

Another advantage is that electromagnets can be turned on and off quickly. This is useful in applications where the motor needs to be started and stopped frequently. For example, in a door - opening mechanism that uses a DC motor, the electromagnet can be energized to start the motor and open the door, and then de - energized to stop the motor when the door is fully open.

However, electromagnets also have some disadvantages. They require a continuous supply of electrical current to maintain the magnetic field. This means that they consume more power compared to motors with permanent magnets, especially when the motor is operating at a constant speed and load. Additionally, the presence of the coil and the need for current control circuitry can make the motor more complex and expensive to manufacture. The heat generated by the current flowing through the coil can also be a problem, as it may require additional cooling mechanisms to prevent overheating and ensure reliable operation.

4. How Magnets Function in DC Motors

4.1 Interaction between Magnets to Generate Rotation

In a DC motor with a permanent - magnet stator and an electromagnet rotor, the interaction between the magnetic fields is what causes the rotor to rotate. When a direct current flows through the coils of the rotor, it creates an electromagnetic field. The poles of this electromagnetic field (north and south) interact with the poles of the permanent - magnet stator.

As like poles repel and opposite poles attract, the forces between the magnetic fields of the rotor and the stator create a torque. For example, if the north pole of the rotor's electromagnetic field is close to the north pole of the stator's permanent magnet, there will be a repulsive force that pushes the rotor away. At the same time, the south pole of the rotor's electromagnetic field will be attracted to the north pole of the stator's permanent magnet. These combined forces cause the rotor to rotate.

To ensure continuous rotation, a device called a commutator is used. The commutator is a split - ring device that is connected to the rotor's coils. As the rotor rotates, the commutator reverses the direction of the current flowing through the coils at the appropriate moments. This reverses the polarity of the rotor's electromagnetic field, ensuring that the attractive and repulsive forces between the rotor and the stator continue to act in a way that promotes continuous rotation.

4.2 Role of Magnets in Determining Motor Torque and Speed

The strength of the magnets used in a DC motor has a direct impact on the torque and speed of the motor. Torque is the rotational force that the motor can generate, and speed is the rate at which the motor rotates.

A stronger magnetic field, whether from a more powerful permanent magnet or a higher - current - carrying electromagnet, can generate a greater torque. In the case of a permanent - magnet DC motor, using a neodymium magnet instead of a ferrite magnet will generally result in a higher torque output. This is because neodymium magnets have a much higher magnetic field strength. For an electromagnet - based DC motor, increasing the current flowing through the coil or increasing the number of turns in the coil (while maintaining the appropriate wire gauge to handle the current) will increase the magnetic field strength and, consequently, the torque.

The relationship between torque and speed in a DC motor is also influenced by the magnets. According to the motor's basic equations, as the torque increases, the speed may decrease if the load on the motor remains constant. However, if the motor is designed to operate under variable - load conditions, the control of the magnetic field (in the case of an electromagnet) or the choice of a suitable permanent magnet can be optimized to achieve the desired balance between torque and speed. For example, in a DC motor used in an electric wheelchair, the motor needs to be able to provide high torque for climbing slopes (which may result in a lower speed) and also be able to operate at a reasonable speed on flat surfaces. The choice of magnets and the design of the motor's magnetic circuit are carefully considered to meet these requirements.

5. Significance of Magnets in DC Motors

5.1 Impact on Motor Performance

The type and quality of magnets used in DC motors have a profound impact on their overall performance. High - performance magnets, such as neodymium magnets, enable the design of motors with higher efficiency. A more efficient motor can convert a larger proportion of the electrical energy it receives into mechanical energy, reducing energy losses in the form of heat. This not only saves energy but also allows the motor to operate for longer periods without overheating.

Magnets also affect the torque - speed characteristics of the motor. Motors with strong magnets can provide a higher starting torque, which is essential for applications where the motor needs to overcome a significant amount of inertia to start moving. For example, in a crane motor, a high starting torque is required to lift heavy loads. The use of appropriate magnets, like alnico or neodymium magnets depending on other factors such as temperature and cost, can ensure that the motor can deliver the necessary starting torque.

The speed regulation of a DC motor is also influenced by the magnets. In some applications, such as in precision machinery or certain types of medical equipment, the motor needs to maintain a consistent speed regardless of changes in the load. The magnetic properties of the magnets, along with the design of the motor's control system, play a crucial role in achieving good speed regulation.

5.2 Influence on Motor Size and Weight

The choice of magnets can have a significant impact on the size and weight of DC motors. High - magnetic - strength magnets, such as neodymium magnets, allow for the design of smaller and lighter motors. Since these magnets can generate a strong magnetic field in a relatively small volume, the overall size of the motor can be reduced.

In applications where space and weight are critical factors, such as in aerospace or portable electronics, the use of neodymium - magnet - based DC motors can offer a significant advantage. For example, in a drone, using a small, lightweight DC motor with neodymium magnets can help to reduce the overall weight of the drone, improving its flight performance and battery life. Similarly, in a laptop's cooling fan, a compact DC motor with a neodymium magnet can provide sufficient airflow while taking up minimal space inside the laptop.

On the other hand, if a less powerful magnet, like a ferrite magnet, is used in an application where a higher magnetic field strength is required, the motor may need to be larger and heavier to generate the same amount of torque. This is because a larger volume of the less - powerful magnet may be needed to produce an equivalent magnetic field.

5.3 Contribution to Energy Efficiency

Magnets play a crucial role in the energy efficiency of DC motors. More efficient magnets can reduce the amount of electrical energy required to operate the motor. For example, in a permanent - magnet DC motor, a magnet with a high remanence (the magnetic field remaining in the magnet after an external magnetic field has been removed) and a low coercivity loss (the energy required to demagnetize the magnet) will result in a more energy - efficient motor.

Neodymium magnets, with their high magnetic field strength, can enable the motor to operate with less current while still delivering the required torque. This reduction in current consumption leads to lower energy losses in the form of heat generated in the motor's coils. In addition, the use of electromagnets with proper control circuitry can optimize the magnetic field according to the load requirements, further improving energy efficiency. For example, in a DC motor used in a variable - speed pump, the current to the electromagnet can be adjusted based on the flow rate needed, ensuring that the motor consumes only the necessary amount of energy.
