1. Introduction to Magnets in Speakers

In the world of audio technology, speakers serve as the crucial link between electronic signals and the rich, immersive sounds that fill our ears. At the core of every speaker lies a component that is as essential as it is fascinating - the magnet. From the tiny speakers embedded in our smartphones to the colossal sound systems powering large - scale concerts, magnets play an irreplaceable role in the process of sound generation and reproduction.

The use of magnets in speakers dates back to the early days of audio engineering, marking a significant milestone in the evolution of sound technology. Over time, continuous advancements in magnetic materials and manufacturing techniques have led to remarkable improvements in speaker performance, enabling the creation of audio systems that deliver higher fidelity, greater efficiency, and more powerful sound. This introduction sets the stage for a detailed exploration of how magnets function within speakers, their diverse types, applications, and the future developments that are shaping the audio landscape.

2. The Scientific Principles of Magnets in Speakers

2.1 The Basics of Electromagnetic Induction in Speaker Operation

The fundamental operation of speakers is grounded in the principle of electromagnetic induction, a discovery that has had a profound impact on the field of electrical engineering. In a speaker, the key components involved in this process are the voice coil and the magnet. The voice coil, a coil of wire, is positioned within the magnetic field generated by a permanent magnet. When an audio signal, which is an alternating current (AC), passes through the voice coil, it creates a changing magnetic field around the coil.

According to the laws of electromagnetism, this changing magnetic field interacts with the static magnetic field of the permanent magnet. As a result, a force is exerted on the voice coil, causing it to move back and forth. This movement is directly proportional to the strength and direction of the electrical current flowing through the coil. The voice coil is attached to a diaphragm, typically made of lightweight materials such as paper, plastic, or fabric. As the voice coil moves, it vibrates the diaphragm, which in turn sets the air molecules in motion, generating sound waves that we perceive as sound.

The frequency of the sound produced by the speaker is determined by the frequency of the electrical signal passing through the voice coil. Higher - frequency signals cause the voice coil and diaphragm to vibrate more rapidly, producing higher - pitched sounds, while lower - frequency signals result in slower vibrations and lower - pitched sounds. This intricate interaction between electricity, magnetism, and mechanical motion is what enables speakers to reproduce the vast spectrum of sounds present in music, speech, and other audio content.

2.2 Types of Magnets Used in Speaker Design

Speaker manufacturers utilize a variety of magnets, each with its own unique properties, to meet the diverse requirements of different speaker applications.

Permanent Magnets:

- Alnico Magnets: Alnico magnets, composed of an alloy of aluminum, nickel, and cobalt, were among the first types of magnets used in speakers. They are known for their high magnetic remanence, which refers to their ability to retain magnetization, and high coercivity, indicating their resistance to demagnetization. Alnico magnets produce a warm, rich sound quality that is highly prized by audiophiles and in high - end audio systems. Their sound signature often adds a certain character to the audio, enhancing the overall listening experience. However, Alnico magnets are relatively heavy and expensive to produce, which has limited their use in mass - market, budget - friendly speaker applications.

 - Ferrite Magnets: Ferrite magnets, also referred to as ceramic magnets, are made from iron oxide and other metallic oxides. They offer a more cost - effective alternative to Alnico magnets. While they have lower magnetic strength, their affordability, durability, and resistance to corrosion make them a popular choice for a wide range of consumer - grade speakers. Ferrite magnets are commonly found in inexpensive portable speakers, computer speakers, and other audio devices where cost - effectiveness is a priority without sacrificing basic sound - producing capabilities.

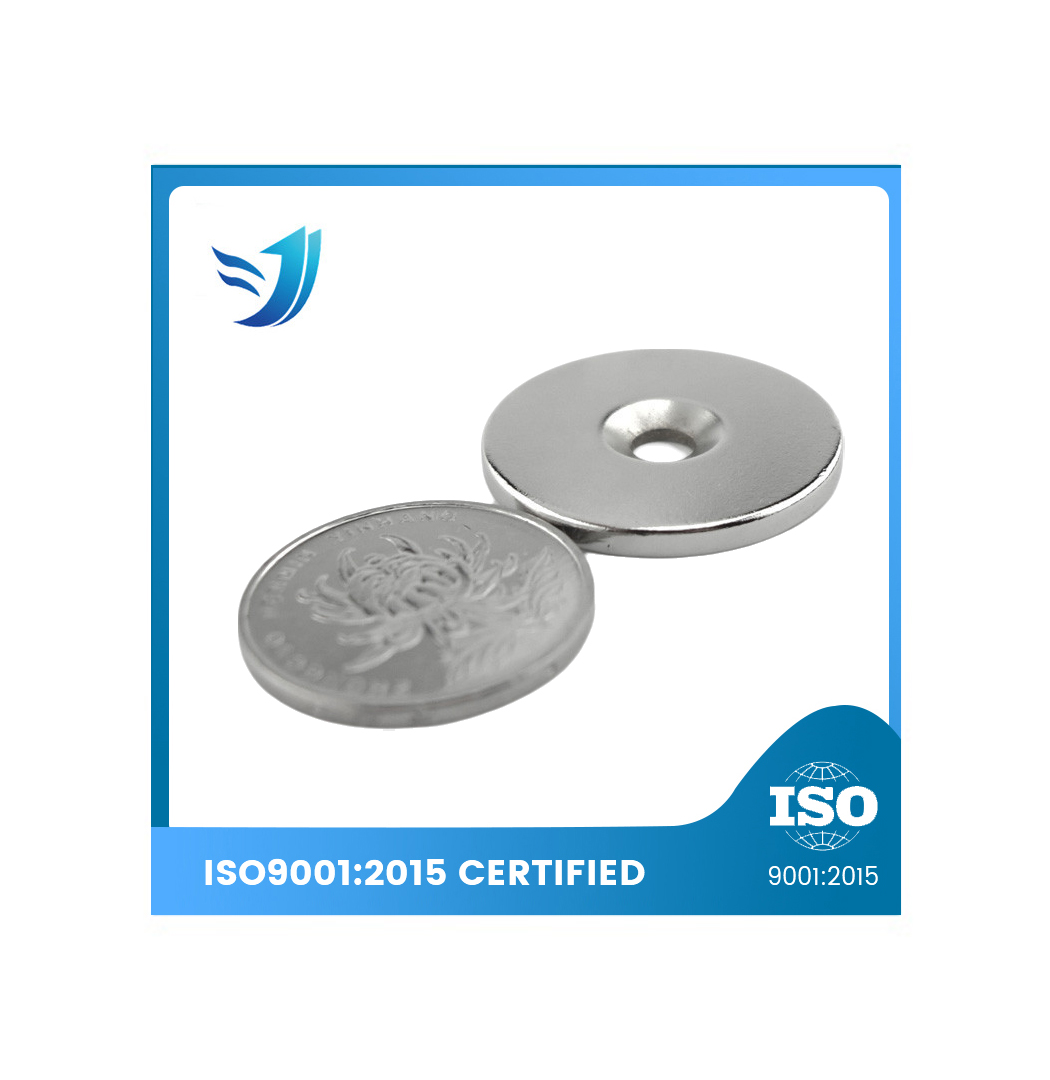

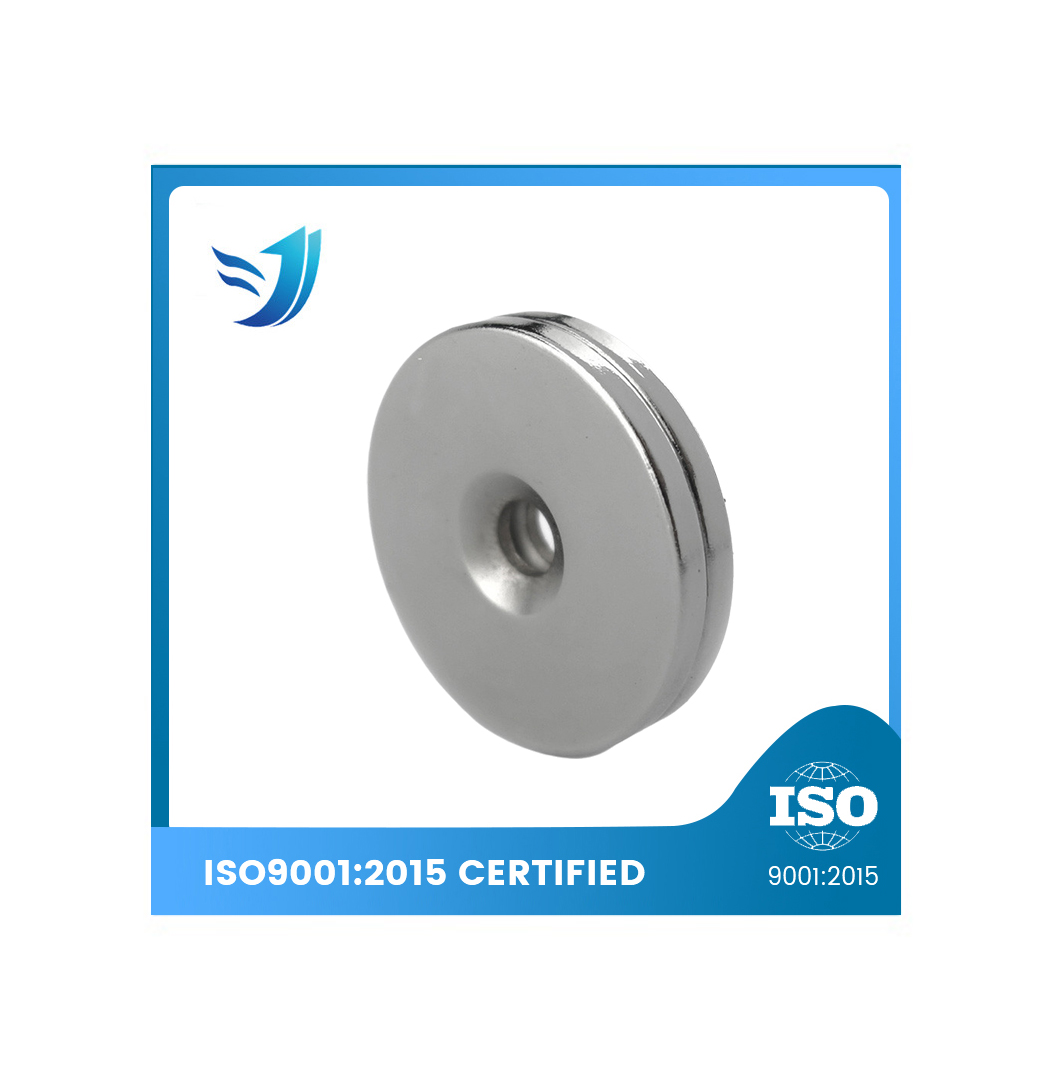

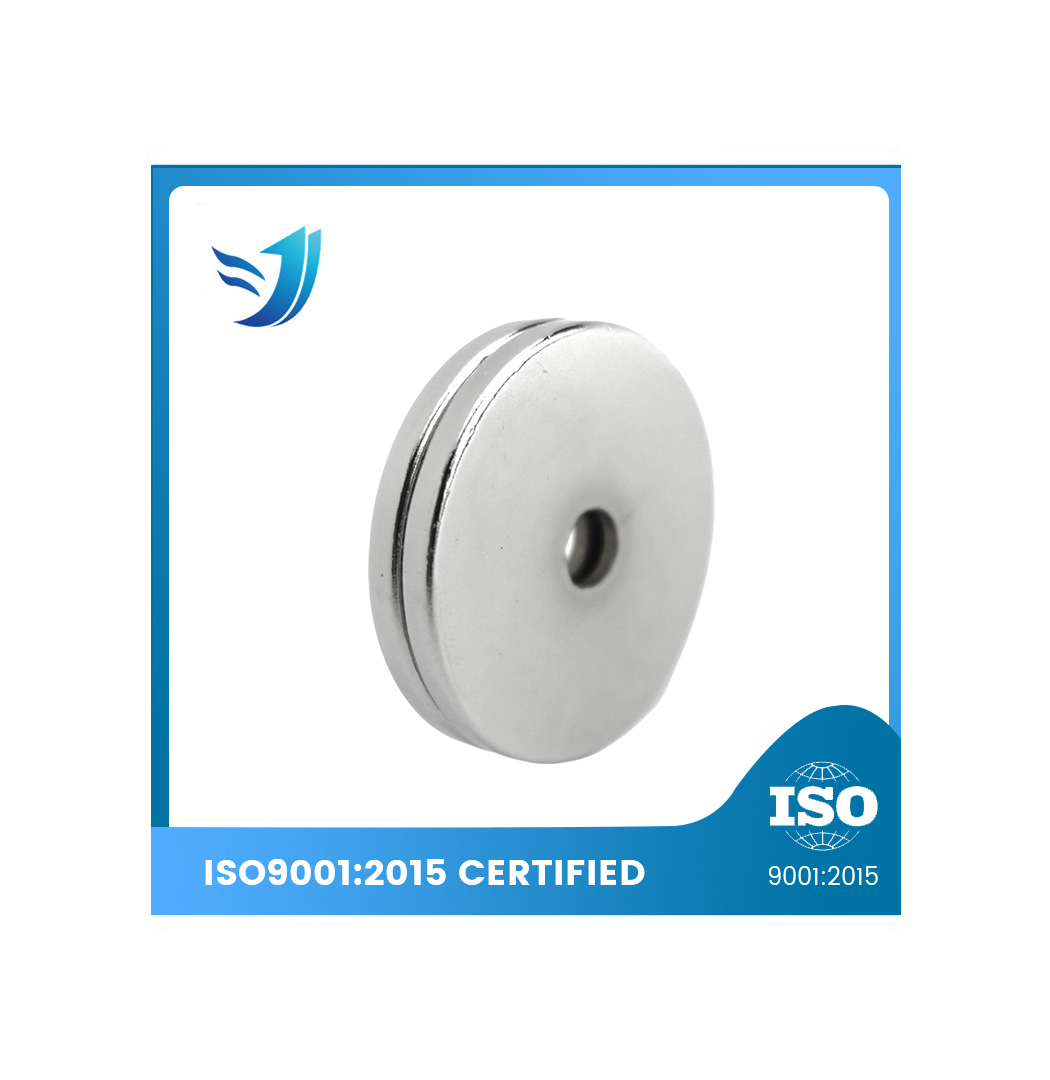

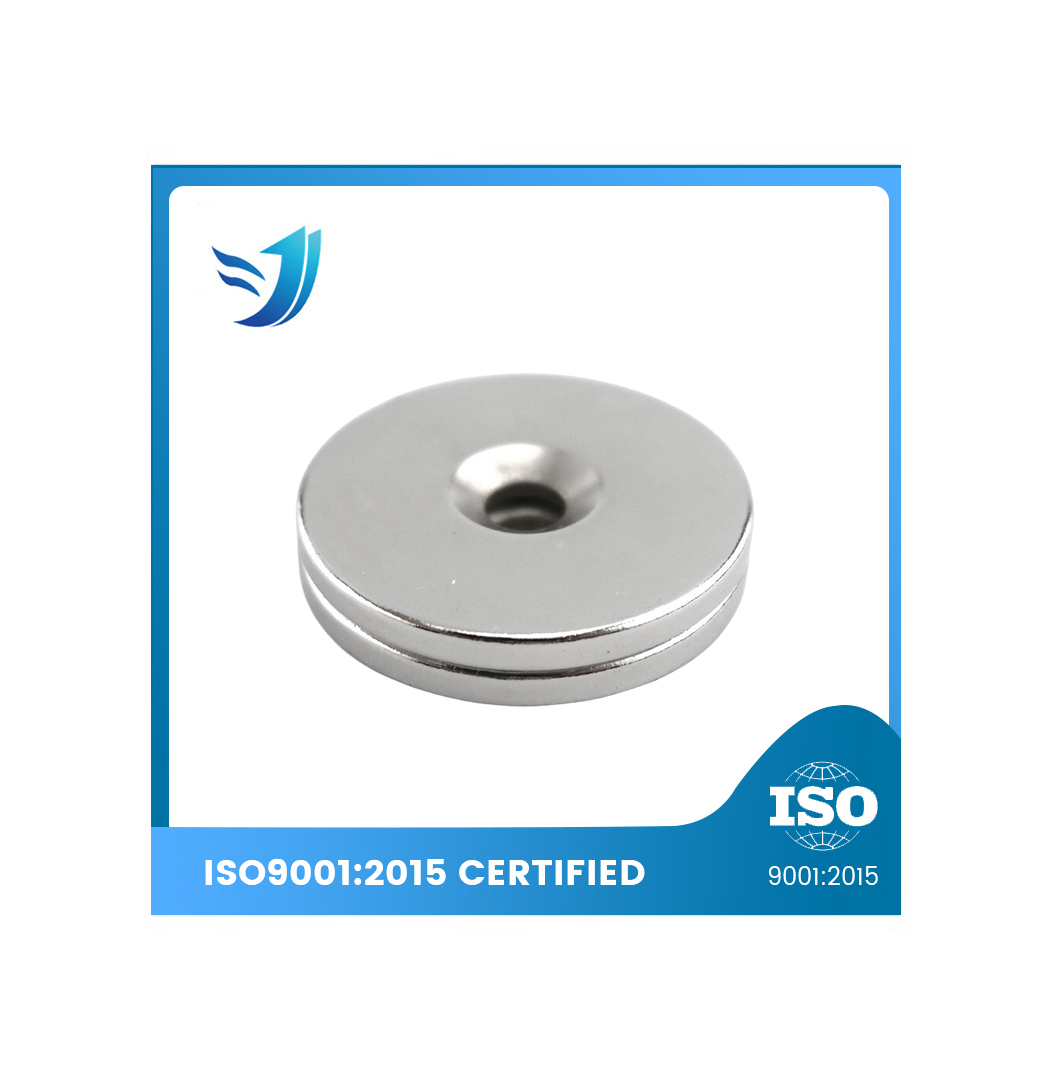

 - Neodymium Magnets: Neodymium magnets, consisting of neodymium, iron, and boron, are the most powerful type of permanent magnets available. They provide a high magnetic field strength in a relatively small and lightweight package. This makes them ideal for modern speaker designs, especially those where compact size and high performance are essential. Neodymium magnets are increasingly used in high - end headphones, portable Bluetooth speakers, and high - fidelity home audio systems. Their small size allows for more compact speaker enclosures, while their strong magnetic field enables higher sensitivity and better bass response, contributing to a more immersive audio experience.

Electromagnets:

Although permanent magnets are more commonly used in speakers, electromagnets also find applications in certain specialized speaker designs. Electromagnets are created by passing an electric current through a coil of wire, which generates a magnetic field. In some high - end or experimental speaker systems, electromagnets are used to create adjustable magnetic fields. This allows for greater control over the speaker's performance, such as adjusting the magnetic flux to optimize sound quality or to implement advanced audio processing techniques. However, the use of electromagnets in speakers is less common due to the added complexity and power requirements compared to permanent magnets.

2.3 Magnetic Circuit Design in Speakers

The magnetic circuit in a speaker is a carefully engineered system that encompasses the magnet, the voice coil, and the surrounding magnetic yoke and pole pieces. The primary objective of the magnetic circuit design is to maximize the magnetic flux density in the gap where the voice coil is located while minimizing magnetic leakage and energy losses.

The permanent magnet is typically shaped and positioned to generate a strong and uniform magnetic field in the voice coil gap. The yoke, usually constructed from a high - permeability magnetic material like iron, serves to complete the magnetic circuit by providing a low - reluctance path for the magnetic flux. The pole pieces, located on either side of the voice coil gap, further concentrate the magnetic field, ensuring that the voice coil experiences the maximum force for a given electrical current.

A well - designed magnetic circuit is crucial for achieving high - efficiency and high - quality sound reproduction in speakers. It helps to reduce distortion, improve power handling capabilities, and enhance the overall performance of the speaker. Engineers employ advanced computer - aided design (CAD) tools and magnetic simulation software to optimize the magnetic circuit, taking into account factors such as the shape and size of the magnet, the material properties of the yoke and pole pieces, and the dimensions of the voice coil gap. This meticulous design process ensures that the speaker can accurately reproduce audio signals with minimal coloration and maximum fidelity.

3. Applications of Magnets in Speakers

3.1 Home Audio Systems

In the realm of home audio, magnets play a pivotal role in delivering high - quality sound that enriches the listening experience. In bookshelf speakers, which are popular for their compact size and versatility, the choice of magnet can significantly influence the sound characteristics. Neodymium magnets are often favored in high - end bookshelf speakers as they enable a more compact design without compromising on performance. These speakers can reproduce a wide range of frequencies with clarity and accuracy, making them suitable for various music genres, movie soundtracks, and gaming audio.

Floor - standing speakers, designed to produce more powerful and immersive sound, also rely heavily on magnets. Larger magnets, such as Alnico or multiple neodymium magnets in some cases, are used to drive larger voice coils and diaphragms, enabling the production of deep, rich bass. The magnetic circuit in floor - standing speakers is carefully optimized to handle high power levels and minimize distortion, ensuring that the audio remains clear and detailed even at high volumes.

Soundbars, which have gained popularity for their space - saving design and ease of use in home entertainment setups, also incorporate magnets. These compact speakers use a combination of small - sized magnets and advanced audio processing algorithms to simulate surround sound and deliver clear dialogue and dynamic audio for television viewing. The magnets in soundbars work in tandem with other components to create a virtual soundstage, enhancing the overall audio experience without the need for multiple speakers.

3.2 Professional Audio Equipment

In the professional audio industry, where precision, reliability, and high - fidelity sound reproduction are of utmost importance, magnets are key components in a wide range of equipment. In concert hall speakers and public address (PA) systems, large and powerful magnets are used to drive speakers that can handle high power levels and cover large areas. Neodymium magnets are increasingly being adopted in modern professional speakers due to their high strength - to - weight ratio, allowing for more portable and efficient speaker designs. These speakers need to deliver consistent and accurate sound over long periods, and the use of high - quality magnets ensures that they can withstand the rigors of frequent use in demanding environments.

Studio monitors, essential for audio engineers during music production, mixing, and mastering, require accurate and neutral sound reproduction. The magnets in studio monitors are carefully selected and designed to minimize coloration and distortion, providing a true representation of the audio signal. High - quality Alnico or neodymium magnets are commonly used in studio monitors to achieve the precise and detailed sound required for professional audio work. This allows engineers to make accurate decisions regarding audio levels, equalization, and other aspects of the production process.

In addition, professional audio equipment such as headphones and in - ear monitors also rely on magnets. For musicians performing on stage, in - ear monitors need to be lightweight, provide excellent sound isolation, and deliver accurate sound reproduction. Neodymium magnets are often used in these devices due to their small size and high performance, enabling a comfortable fit and precise audio monitoring. Similarly, high - end headphones for professional use incorporate advanced magnetic designs to offer superior sound quality, allowing users to hear every detail in the audio with clarity.

3.3 Mobile Devices and Portable Speakers

With the proliferation of mobile devices such as smartphones, tablets, and laptops, the demand for high - quality built - in speakers and portable speakers has soared. In mobile devices, where space is extremely limited, magnets need to be small and lightweight while still delivering acceptable sound quality. Neodymium magnets are the preferred choice for most mobile device speakers as they can fit into the tiny enclosures and provide sufficient power to produce audible sound. These magnets enable mobile devices to offer a basic audio experience for tasks such as listening to music, watching videos, and making voice calls.

Portable speakers, available in various shapes and sizes, also rely on magnets for their operation. From small, pocket - sized Bluetooth speakers to larger, battery - powered speakers for outdoor use, the choice of magnet affects the speaker's volume, sound quality, and battery life. Neodymium magnets are commonly used in portable speakers to achieve a balance between size, weight, and performance. They allow portable speakers to deliver relatively loud and clear sound, making them suitable for outdoor gatherings, parties, and on - the - go listening. Some portable speakers also incorporate advanced magnetic designs and audio technologies to enhance features such as bass response and soundstage, providing a more immersive audio experience despite their compact size.

4. Design and Selection of Magnets for Speakers

4.1 Performance Requirements

When designing or selecting magnets for speakers, several performance factors need to be carefully evaluated to ensure optimal sound reproduction. Magnetic Flux Density: The magnetic flux density in the voice coil gap is a critical parameter that directly impacts the force exerted on the voice coil and, consequently, the speaker's volume and efficiency. A higher magnetic flux density enables a more powerful movement of the voice coil and diaphragm, resulting in louder sound output. However, increasing the magnetic flux density also requires careful consideration of other factors, such as the power handling capabilities of the speaker and the potential for distortion. Manufacturers must strike a balance to achieve the desired sound level while maintaining sound quality.

Sensitivity: Speaker sensitivity refers to how much sound output a speaker can produce for a given amount of input power. Magnets with higher magnetic strength can contribute to increased sensitivity, allowing the speaker to produce louder sound with less power. This is particularly important in applications where power efficiency is a concern, such as in battery - powered mobile devices and portable speakers. A more sensitive speaker can operate for longer periods on a single battery charge, providing a better user experience.

Frequency Response: The frequency response of a speaker describes its ability to reproduce different frequencies of sound accurately. Magnets can influence the frequency response by affecting the movement of the voice coil and diaphragm. A well - designed magnetic circuit can help ensure a flat and extended frequency response, minimizing peaks and dips in the sound output across the audible frequency range. This is essential for accurate sound reproduction, whether it's for music, movies, or other audio content, as it allows the listener to hear all the frequencies in the audio signal without distortion or coloration.

4.2 Compatibility with Other Speaker Components

Magnets in speakers must be compatible with other components to ensure seamless operation and optimal performance. Voice Coil Compatibility: The voice coil and the magnet are closely intertwined in the speaker's operation. The size, shape, and number of turns in the voice coil need to be carefully matched to the magnetic field strength and the design of the magnetic circuit. A mismatch between the voice coil and the magnet can lead to inefficiencies, distortion, or even damage to the speaker components. For example, if the voice coil is too large for the magnetic field, it may not move freely, resulting in restricted sound output and potential overheating.

Diaphragm Compatibility: The diaphragm, attached to the voice coil, also needs to be compatible with the magnet. The mass and stiffness of the diaphragm can affect the movement of the voice coil within the magnetic field. A diaphragm that is too heavy or too stiff may not respond quickly enough to the electrical signals, leading to poor sound quality, especially at higher frequencies. The magnet's strength and the design of the magnetic circuit should be optimized to drive the diaphragm effectively and produce accurate sound reproduction across the entire frequency spectrum.

Enclosure Compatibility: The speaker enclosure, whether it's a sealed box, ported box, or other type of enclosure, can interact with the magnet and the speaker components. The enclosure design can influence the acoustic performance of the speaker, and the magnet's properties should be taken into account during the enclosure design process. For example, in a ported enclosure, the magnet's performance can affect the tuning of the port and the overall bass response of the speaker. Proper integration of the magnet with the enclosure is essential for achieving the desired sound characteristics.

4.3 Cost - Benefit Analysis

Cost is a significant consideration in the selection of magnets for speakers, as it impacts both the manufacturing cost and the final price of the speaker for consumers. Material Costs: Different types of magnets vary widely in cost. Alnico magnets, due to the use of rare and expensive metals like cobalt, are relatively costly. Neodymium magnets, although very powerful, can also be expensive, especially for high - quality grades. Ferrite magnets, on the other hand, are the most cost - effective option. Manufacturers need to balance the desired performance of the speaker with the cost of the magnet, choosing the most appropriate type based on the target market and price point. For budget - friendly speakers aimed at a mass market, ferrite magnets may be sufficient, while high - end speakers targeting audiophiles may justify the higher cost of neodymium or Alnico magnets.

Long - Term Costs: In addition to the initial material cost, the long - term costs associated with the use of magnets in speakers also need to be considered. Durable magnets that can withstand the rigors of continuous use and environmental factors can reduce maintenance and replacement costs over the lifespan of the speaker. For example, neodymium magnets with proper coatings can resist corrosion and demagnetization, ensuring consistent performance over time. This reduces the need for frequent repairs or replacements, saving both the manufacturer and the consumer money in the long run. Brands must carefully evaluate these factors to make an informed decision that maximizes the cost - benefit ratio and provides consumers with high - quality speakers at a reasonable price.

5. Maintenance and Troubleshooting of Magnets in Speakers

5.1 Regular Maintenance

Regular maintenance of speakers with magnets is essential to ensure their optimal performance and longevity. Cleaning: Over time, dust, dirt, and debris can accumulate on the speaker grille, the magnet, and other components. Using a soft, dry cloth or a gentle brush, the speaker should be cleaned regularly to remove any contaminants. This helps prevent the dust from entering the speaker enclosure and potentially affecting the movement of the voice coil or the performance of the magnet. For speakers used in dusty environments, more frequent cleaning may be required.

Inspection: Periodically inspecting the speaker for any signs of damage, such as cracks in the diaphragm, loose connections, or visible damage to the magnet, is crucial. In the case of magnets, check for any signs of demagnetization, such as a decrease in the speaker's volume or a change in the sound quality. If any abnormalities are detected, the speaker should be serviced or repaired as soon as possible to prevent further damage. Additionally, inspect the electrical connections to ensure they are secure and free from corrosion.

Testing: It can be beneficial to perform occasional tests on the speaker's performance. Play a variety of audio tracks with different frequencies and volumes to check if the speaker is producing sound accurately and without distortion. Listen for any unusual noises, such as buzzing or rattling, which may indicate a problem with the magnet, voice coil, or other components. These simple tests can help identify potential issues early and allow for timely maintenance or repair.

5.2 Common Issues and Solutions

One common issue with magnets in speakers is demagnetization. This can occur due to factors such as exposure to high temperatures, strong external magnetic fields, or physical damage. Demagnetization can lead to a decrease in the speaker's sensitivity and volume, as well as a change in the frequency response. If demagnetization is suspected, the speaker can be tested using a magnetometer to measure the magnetic field strength of the magnet. In some cases, it may be possible to re - magnetize the magnet using a suitable magnetizing device. However, if the demagnetization is severe, the magnet may need to be replaced.

Another issue is magnetic interference, especially in environments where there are other strong magnetic fields, such as near electrical appliances or transformers. Magnetic interference can cause distortion or unwanted noise in the speaker output. To solve this problem, the speaker can be repositioned away from the source of the magnetic interference. In some cases, shielding the speaker with a magnetic - resistant material, such as mu - metal, can also help reduce the impact of the external magnetic field.

Problems with the magnetic circuit, such as a loose or damaged yoke or pole piece, can also affect the performance of the speaker. These issues can be more difficult to diagnose and repair, often requiring professional audio repair services. A thorough inspection of the magnetic circuit components and their connections is necessary to identify and fix any problems, ensuring that the speaker can operate at its best.
